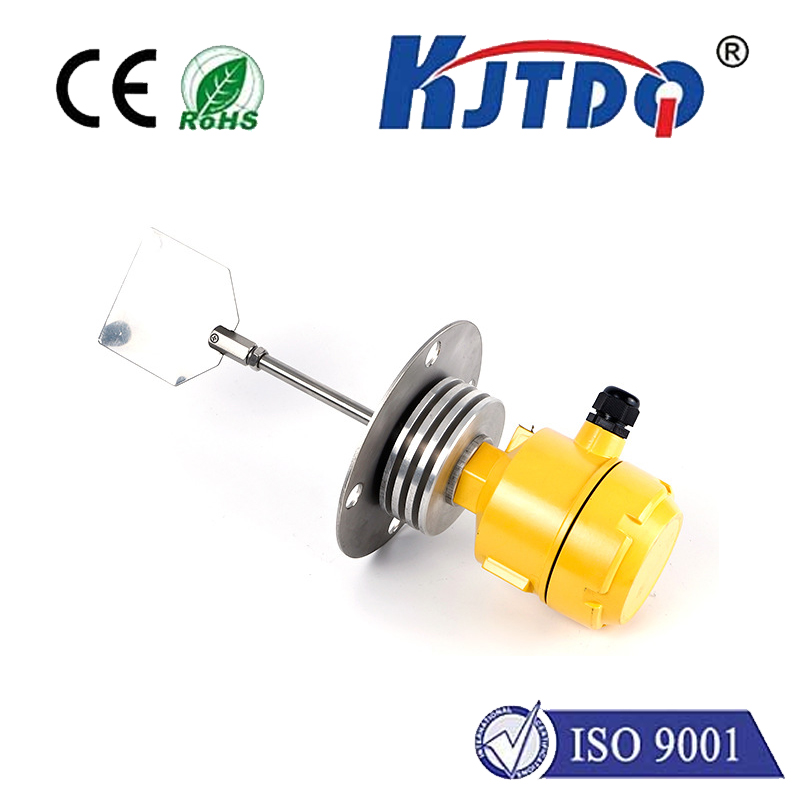

KJT-ZLW Paddle Type Material Level Controller
KJT-ZLW Paddle Type Material Level Controller
KJT-ZLW Paddle Type Material Level Controller
KJT-ZLW Paddle Type Material Level Controller

KJT-ZLW Paddle Type Material Level Controller

  • Product Series:KJT-ZLW
  • Load current:AC380V 5A,DC24V 5A
  • Contact method:NO 1. NC1; NO 2. NC 2. (please specify when ordering)
  • Appliance life:>100,000 times
  • Protection class :IP65/IP67
  • Material temperature:-30℃~250℃

KJT-ZLW type paddle material level controller blades use a rotating shaft to connect with a clutch. When not in contact with the material,

the motor keeps running normally. When the blade contacts the material, the motor stops rotating and the mechanism outputs a signal

at the same time. Detect material level height or silo blockage signal.

Used in chemical plastics, pharmaceuticals, feed, cement, grain, flour, electric power, chemical powder and other industrial and mining industries.

main parameters

Ambient temperature-40℃~80℃
Material temperature-30℃~250℃
Blade speed1 rpm
Power consumption<3W
Power supplyAC220V   50Hz
Number of contacts1 NO, 1 NC (2 groups of NOn and 2 groups of NC can be added as needed)
Contact ratingAC380V 5A     DC24V 5A
Installation method1/2 pipe thread, pull connection
Electrical life>100,000 times
Protection levelIP65/IP67
Weight2Kg

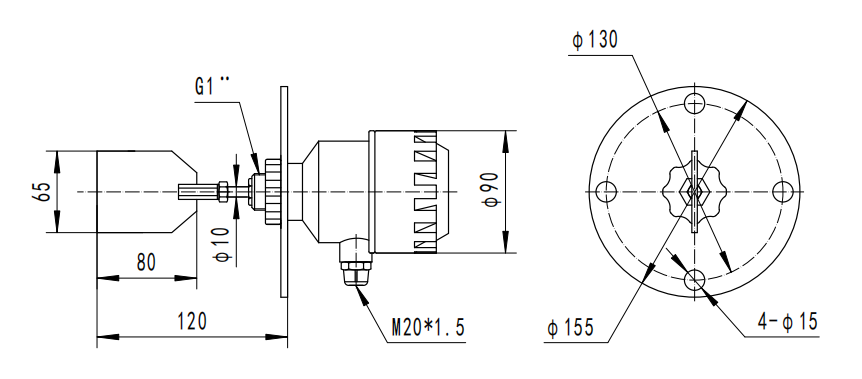

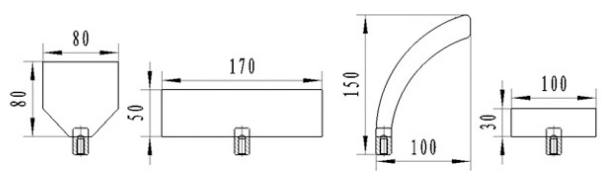

尺寸图

88

1692275816402

f85861ea63038614d36f58cc6993550


kjt-ZLW


1234

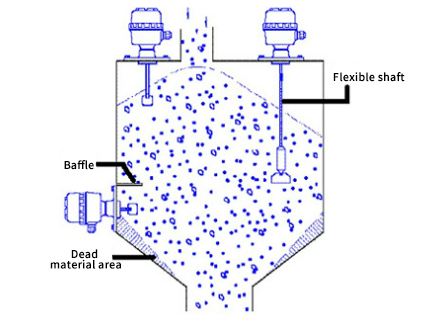

场景图

d25bccef52ed6fc24d8045760301c48
