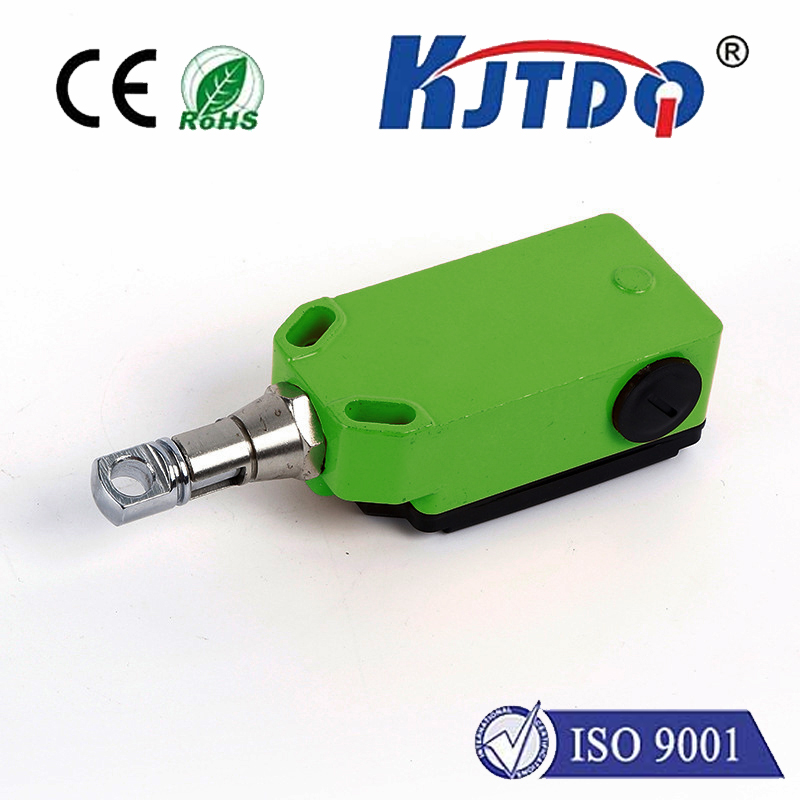

KJT-LSC-I Series Emergency Stop Pull Rope Switch
- Product Series：KJT-LSC-I
- Load current：AC380V 5A，DC24V 5A
- Contact method：NO 1. NC1; NO 2. NC 2. (please specify when ordering)
- Reset mode ：Auto
- Appliance life：＞100,000 times
- Protection class：IP65/IP67
Belt protection switch is widely used in factories and mines with belt conveyors such as steel, cement, power plants, mines, etc. This product is installed on both sides of the belt conveyor and is used A protective switch used to shut down the belt conveyor in an emergency. Pull the wire rope at any point within the operating distance of the switch to cut off the operating circuit and shut down the entire line, thus protecting the safety of the belt conveyor and people.
working principle:

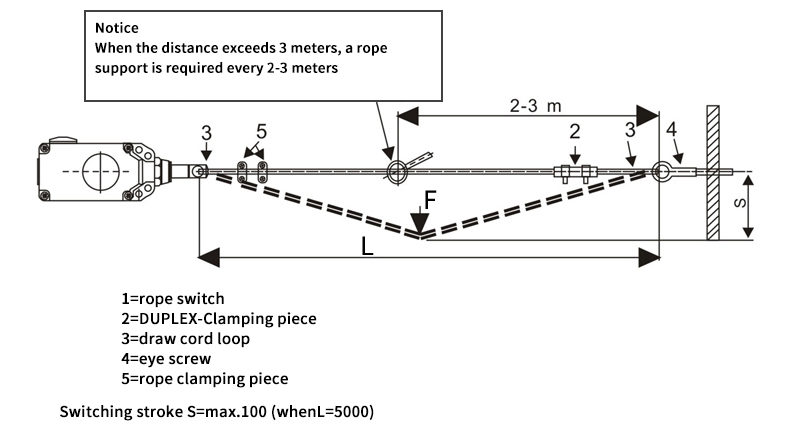

When an emergency occurs at the tape transportation site, pulling the wire rope tied to the lifting eye is the action of the slider and switch in the machine, which sends a shutdown signal. The switch is manually reset after releasing the wire rope.
| Sell material | Aluminum alloy color spray paint |
| Number of contacts | 1N/C+1N/O |
| Contact load | 6A/380VAC |
| Pull cord length | 20+-2m |
| Operating force | Approximately 100N axial force |
| Unlock method | Press VD direct pressure head |
| Operation mode | Pull line or short line |
| Operation mode | M8 screw |
| Wiring | Screw connection |
| Ambient temperature | -25℃~80℃ |
| Electrical life | ＞100,000 times |
| Protection level | IP65/IP67 |
