D4 Subminiature Inductive Proximity Sensor
- Product Series：KJT-D4
- Installation：Flush
- Detection distance：0.8mm/1.0mm/1.2mm/1.5mm
- operating voltage：10-36V DC

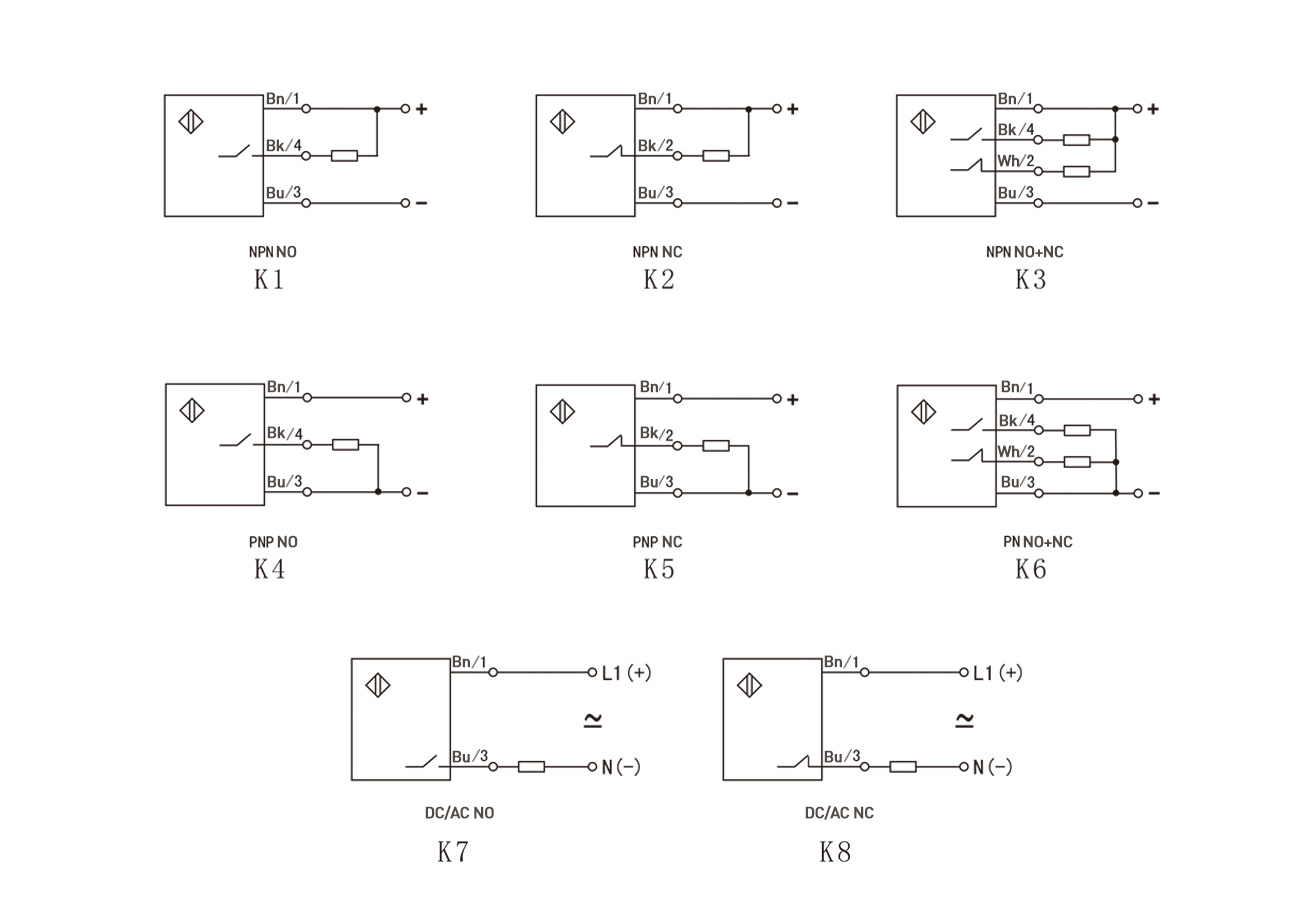

- output method：NPN/PNP NO/NC
- environmental temperature：-25℃~+70℃
- outlet：2M PVC Leads
KJT ultra-small proximity switch, micro integrated circuit metal detector. Specifications: φ3, φ4, M4, M5, φ6.5, M8, etc., can be installed in small and compact spaces, are simple to install, have high working precision and good anti-interference performance, and are suitable for high-precision equipment and micro metal detection
| ● Detect various metal objects | DC 2NO |
| ● With surge, overload, short circuit and reverse polarity protection functions | DC 2NC |
| ● Shell material: Nickel copper alloy | DC 3NPN NO |
| ● Protection grade IP67(IEC) | DC 3NPN NC |
| ● Ambient temperature:-25℃~70℃ | DC PNP NO |
| DC PNP NC |

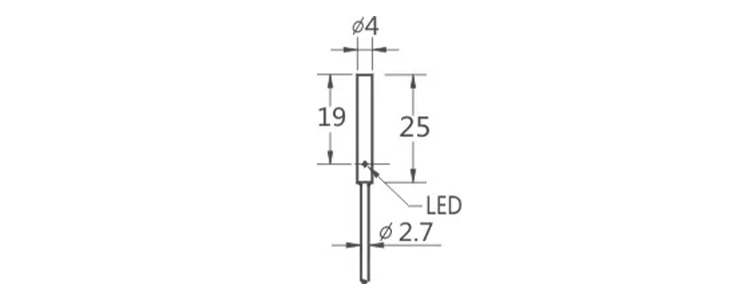

| Product Model | D4*25 |
| Installation method | Non-Flush |
| Detection distance | 0.8mm/1.0mm/1.2mm/1.5mm |
| Working temperature | -25℃~70℃ |
| Specifications | D6.5*45 |
| Operating Voltage | 10-36V DC |
| Ripples | <10% |
| No-load current | <10mA |
| Maximum load current | 200mA |
| Voltage drop | ≤1.5V |
| On-off level | 1000Hz |
| Hysteresis | <15(Sr) |
| Overload protection current | 180mA |
| Short circuit protection | YES |
| Repeat accuracy | <3.0%(Sr) |
| Temperature drift | <10%(Sr) |
| Response time | 0.5ms |
| Connection method | 2M PVC Leads |
| Protection level | IP67 |
| Sensing surface material | PBT |
| Shell Material | Nickel plated copper |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
| Shock/Vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 |
