QS18 Customized Square Photoelectric Switch
QS18 Customized Square Photoelectric Switch
QS18 Customized Square Photoelectric Switch

QS18 Customized Square Photoelectric Switch

  • ·:Universal housing, 18mm threaded cylindrical or side mounting
  • ·:Can replace various styles of sensors
  • ·:Meets IP67 and NEMA 6 standards for use in harsh environments
  • ·:Detection range up to 20 meters
  • ·:Bright LED status indicator visible 360°

Photoelectric switches achieve control by converting changes in light intensity into changes in electrical signals. Kaijit photoelectric switches have a complete range of products, including diffuse reflection type, mirror reflection type, through-beam type, cylindrical, square, slot type, relay output, etc. Kaijit's standard photoelectric switches have a complete range of products, including diffuse reflection type, mirror reflection type, through-beam type, long-distance type, intelligent type, and relay output type. They have strong anti-interference and stable performance to fully meet your needs.

The proximity switches produced by Nanjing Kejit Electric Co., Ltd. can completely replace imported proximity switch brands such as Turck, Omron, and Pepperl+Fuchs.


1


Technical parameter

Induction beam

Visible red LED

Power supply

DC

Sensing mode (normal)

Retroreflex

Sensing mode (details) Polarized

Housing Style

Rectangular w/M18 Mount

Main shell material

ABS

Input/Output

Discrete
Repeat accuracy3500
OutputPNP
Supply voltage

10-30 V dc

Output indicationYellow LED
Connection method Integral QD
Quick disconnect type M12 (European)
Operating temperature -20℃~70℃
Operationlight/dark operation
Output response time (ms) 0.6
Induction beam wavelength 630
Power-on delay (ms) 100
Repeatability (microseconds)150
Number of pins 4
Protection gradeIP67
NEMA RatingNEMA 6
Maximum operating relative humidity [%] 95% @ 50°C
Lens material Acrylic
Adjust Potentiometer
Barrel diameter (mm) 18
Indicator light LED
Timing (Hold/Delay) No
Chemical resistance No
Quick disconnect Yes


e5b387f50cd937bdf9978f7480ded313_

48d15c9616eff25f3efb1c87b0ecbaca_

微信图片_20231216084632

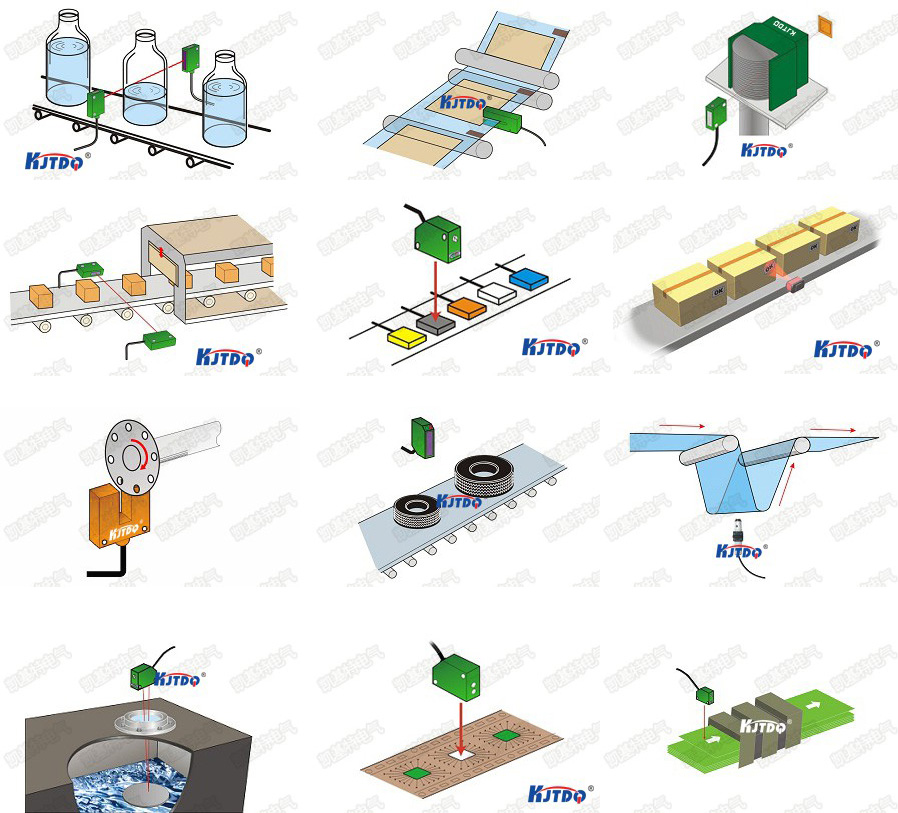

场景图

1
