KJT-FWK Miniature Photoelectric Sensor
KJT-FWK Miniature Photoelectric Sensor

KJT-FWK Miniature Photoelectric Sensor

  • Product Model:KJT-FWK
  • Detection distance :1-2m
  • Standard test object size:opaque objects Φ 2mm min
  • Minimum detection object:opaque objects 2mm
  • Shell material :PBT
  • Protection class:IFC-IP67

Photoelectric switches achieve control by converting changes in light intensity into changes in electrical signals. Kaijit photoelectric switches have a complete range of products, including diffuse reflection type, mirror reflection type, through-beam type, cylindrical, square, slot type, relay output, etc. Kaijit's standard photoelectric switches have a complete range of products, including diffuse reflection type, mirror reflection type, through-beam type, long-distance type, intelligent type, and relay output type. They have strong anti-interference and stable performance to fully meet your needs.

The proximity switches produced by Nanjing Kejit Electric Co., Ltd. can completely replace imported proximity switch brands such as Turck, Omron, and Pepperl+Fuchs.


1

Technical parameter

Model

KJT-FWK

Reflectin mode

Diffuse reflection type

Reflective plate typeThrough beam type

Detection distance

0.5m

2m5m

Light source

Infrared LED (880nm)

Output mode

NPN/PNP NO

Power supply voltage10…30VDC

Consumption current

≤25mA

Response time

≤8.2ms

Hysteresis range

5…20%
Repeat accuracy≤3%
Load current≤200Ma
Voltage drop

≤2.5V

Output indicationYellow LED
Protection circuitSurge, reverse polarity, short circuit protection
Operating temperature-15°C- 55°C
Environment humidity35 to 95% RH
Shell materialPC/ABS
Wiring2M PVC cable
Protection levelIP67

e5b387f50cd937bdf9978f7480ded313_

微信图片_20231216084621

48d15c9616eff25f3efb1c87b0ecbaca_

微信图片_20231216084613

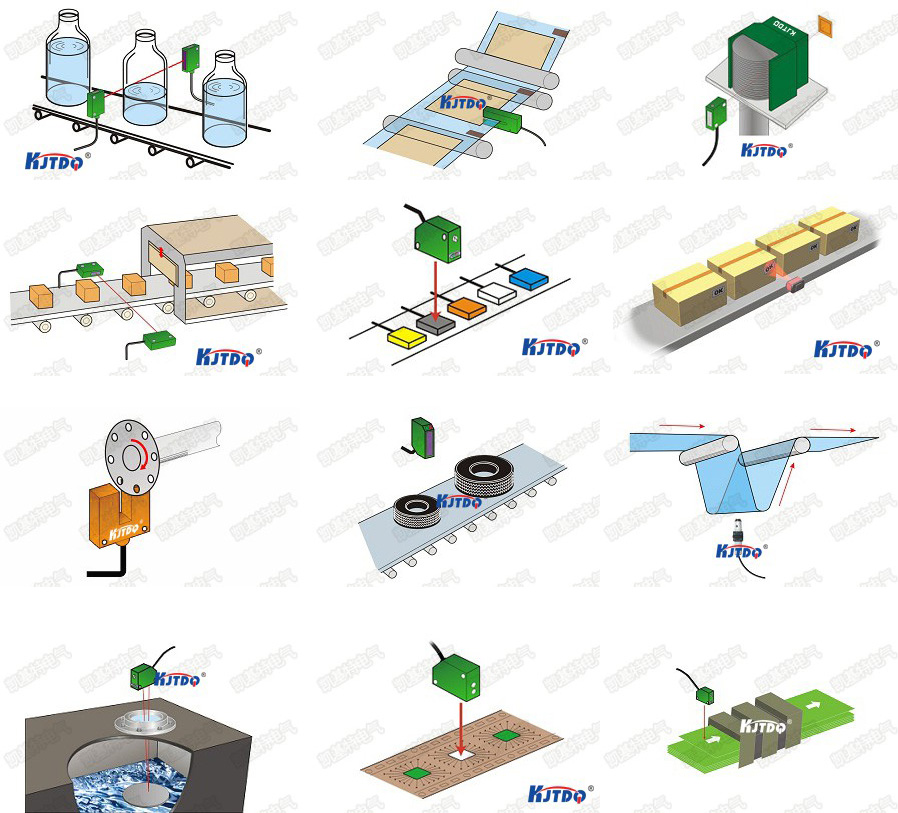

场景图
