Working principle of U-shaped photoelectric sensor

• time：2023-07-29 15:29:25
• Click：0

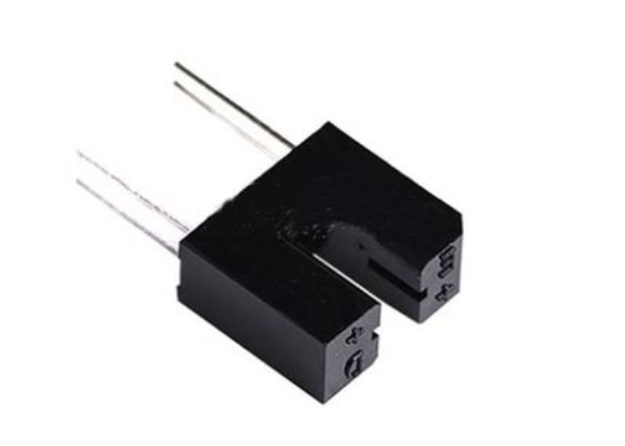

U-shaped photoelectric sensor is a photoelectric switching device that uses optical principles to work. It usually consists of a light emitter and a light receiver that detects the presence or position of an object by measuring the beam of light from an object between them. Below we will take a closer look at how the U-shaped photoelectric sensor works and see how it can improve our daily lives.

  working principle:

Emitting light beam: The transmitter in the U-shaped photoelectric sensor generates a light beam that is directed toward the receiver. This beam can be infrared, laser or other visible light.

Monitoring objects: When an object enters the path of a beam, it blocks or scatters the beam. This way, the receiver receives less light, triggering an input signal.

Detection signal: The receiver will convert the change in light into an electrical signal and transmit it to the control device or computer system. In this way, we are able to detect the presence, location and other relevant information of objects.

Application scenarios:

Automatic door system: U-shaped photoelectric sensors are often used in automatic door systems. When a person or vehicle approaches the door, the sensor detects it and triggers the door to automatically open or close.

Conveyor line control: In logistics and production lines, U-shaped photoelectric sensors are widely used to monitor the position and movement of objects. It can control the start and stop of the conveyor belt to ensure that items are in the correct position.

Line tracking: In applications such as robots, autonomous navigation vehicles, and drones, U-shaped photoelectric sensors can be used for line tracking and navigation to ensure that the equipment can be accurately positioned according to the predetermined path.

Safety monitoring: U-shaped photoelectric sensors can also be used for safety monitoring, such as detecting the approach of human bodies or other objects in dangerous areas or when machines are running, and triggering safety alarms or stopping operations in time.

Conclusion:

By understanding the working principle and application scenarios of the U-shaped photoelectric sensor, we can see its importance in modern life. It increases automation, improves productivity, and provides security. I hope this soft article can bring you an understanding of U-shaped photoelectric sensors and bring more convenience and safety to your life.
