KJT-D6.5 Straight head ultra-small proximity Sensor
KJT-D6.5 Straight head ultra-small proximity Sensor
KJT-D6.5 Straight head ultra-small proximity Sensor

KJT-D6.5 Straight head ultra-small proximity Sensor

  • Product Type:KJT-D6.5MZ
  • Installation Method:Flush
  • Detection Distance:1mm/2mm
  • Working Voltage:10-36V DC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PVC lead wire

KJT ultra-small proximity switch, micro integrated circuit metal detector. Specifications: φ3, φ4, M4, M5, φ6.5, M8, etc., can be installed in small and compact spaces, are simple to install, have high working precision and good anti-interference performance, and are suitable for high-precision equipment and micro metal detection

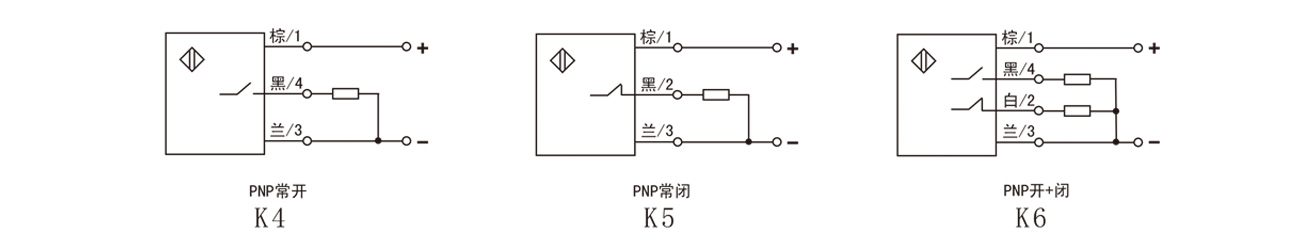

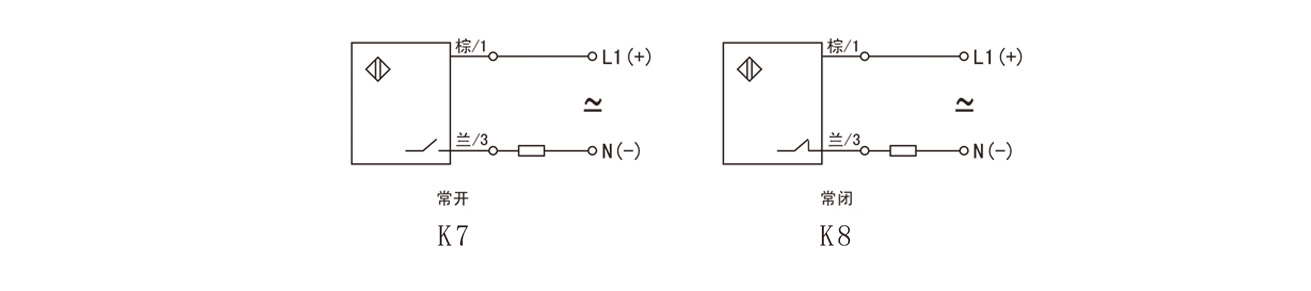

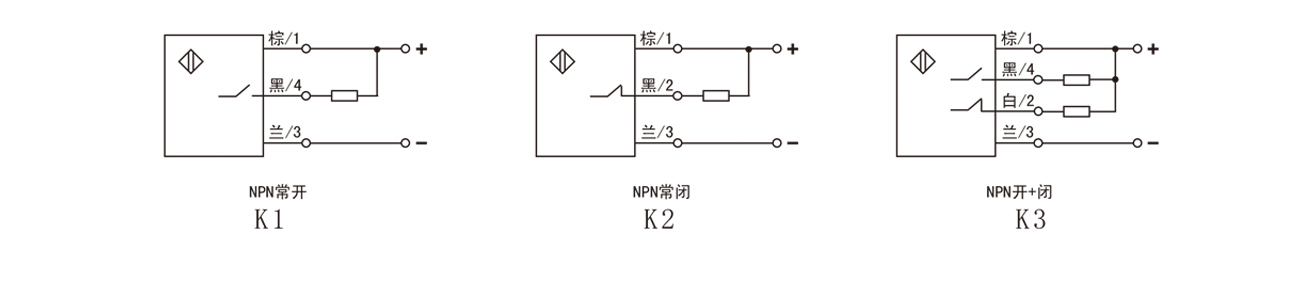

● Detect various metal objectsDC 2NO
● With surge, overload, short circuit and reverse polarity protection functionsDC 2NC
● Shell material: Nickel copper alloyDC 3NPN NO
● Protection grade IP67(IEC)DC 3NPN NC
● Ambient temperature:-25℃~70℃DC PNP NO

DC PNP NC


1



Product Model
KJT-D6.5M
Installation methodFlush
Detection distance
1mm/2mm
Working temperature
-25℃~+70℃

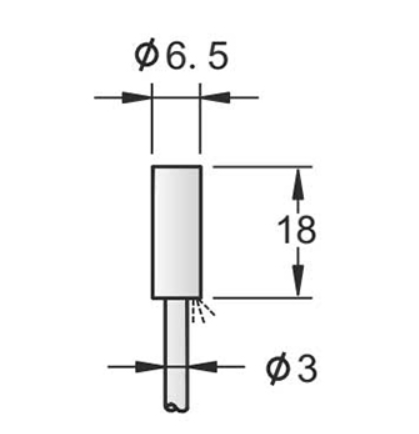

SpecificationsD6.5*18
Operating Voltage
10-36V DC
Ripples<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level1000Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<3.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection method2M PVC Leads
Protection levelIP67
Sensing surface materialPBT
Shell MaterialNickel plated copper
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

D6

3


微信图片_20230810185926


4

场景图
