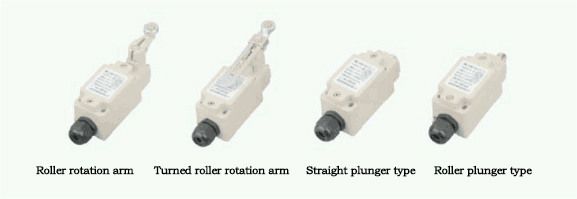

KJT explosion-proof travel switches are mainly used in hazardous places to control the on-off travel of moving parts. Explosion-proof mark Ex demb II C T6 Gb, the composite explosion-proof type is safer and suitable for various harsh environments; there are more than ten specifications such as roller arm type, adjustable rod type, pressure plunger and roller pressure column type, which can meet different occasions Requirements. Widely used in electric power, chemical industry, petroleum, textile, steel and other industries.
Brief introduction
Applicable to the explosive gas environment area 1 and 2 areas;
Suitable for ILA, IL B, IL C Class explosive gas environment;
Suitable for the environment with T1 -T6 for the temperature group;
Suitable for explosive dangerous environments such as refining, storage, chemical, medicine, military and military facilities:
For position signal feedback in the electrical control system.
Features
The shell is made of aluminum alloy high -voltage casting type, and the surface is sprayed with high -voltage static electricity after showering the ball;
Interior explosion -proof stroke switch component;
The switch component shell adopts a flame retardant plastic injection molding, and is welded by ultrasonic welding in the combination of the surface;
The shape size and related technical parameters meet the European standard EN50041 regulations, and the interchangeability is good;
Anti -wiring screws, make users install and maintain;
The shell, cover, rotation axis, and introduction devices adopt a sealing pressure design, which effectively improves the protection level;
The installation method is unique and flexible, and it has fully considered the user’s on -site installation;
It has good waterproof and dustproof characteristics;
Steel pipe or cable wiring.
