What does a magnetic induction sensor consist of?

• time：2023-06-21 15:29:16
• Click：0

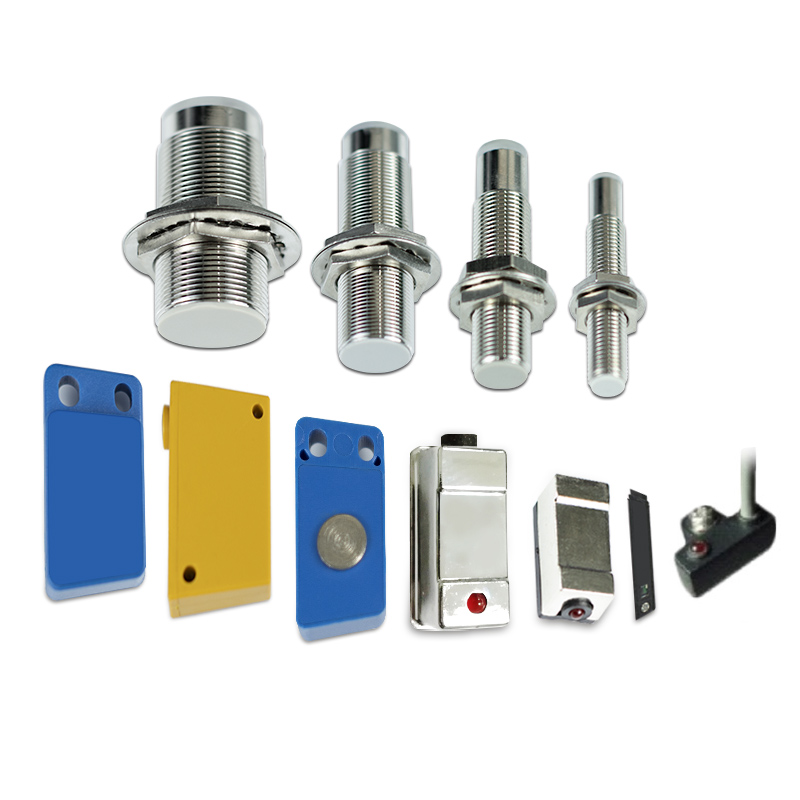

Magnetic induction sensor is a common electronic component commonly used to measure and detect the strength and direction of magnetic fields. Such sensors are usually composed of a variety of materials to achieve their functionality.

One of the main components of a magnetic induction sensor is the magnetic sensitive element. Such components are usually made of ferrite material, a type of ceramic with good magnetic permeability. Ferrite has high magnetic permeability and low resistivity, allowing it to respond significantly to magnetic fields. The magnetic sensitive elements in magnetic induction sensors are usually cylindrical or strip-shaped to increase their sensitivity and accuracy.

In addition to magnetic sensitive elements, magnetic induction sensors also include coils. The coil generates a magnetic field by passing current into its wires, which affects the output of the magnetically sensitive element. This coil is typically made of conductive material, such as copper or silver wire. The length and diameter of the coil can be designed according to the needs of the application to ensure that the generated magnetic field can accurately act on the magnetically sensitive components.

In addition, magnetic induction sensors often include a signal processing circuit. Signal processing circuits are used to convert the output of magnetic sensitive components into digital or analog signals for further processing or transmission. These circuits usually consist of microprocessors, operational amplifiers, and filters to ensure sensor performance and accuracy.

In summary, the fabrication of magnetic induction sensors involves the use of a variety of materials. The magnetic sensing element, coil and signal processing circuitry are key components of the sensor, working together to achieve accurate detection and measurement of magnetic fields. As technology advances, the design and manufacturing methods of magnetic induction sensors are also constantly evolving to meet the needs of different fields and applications.
