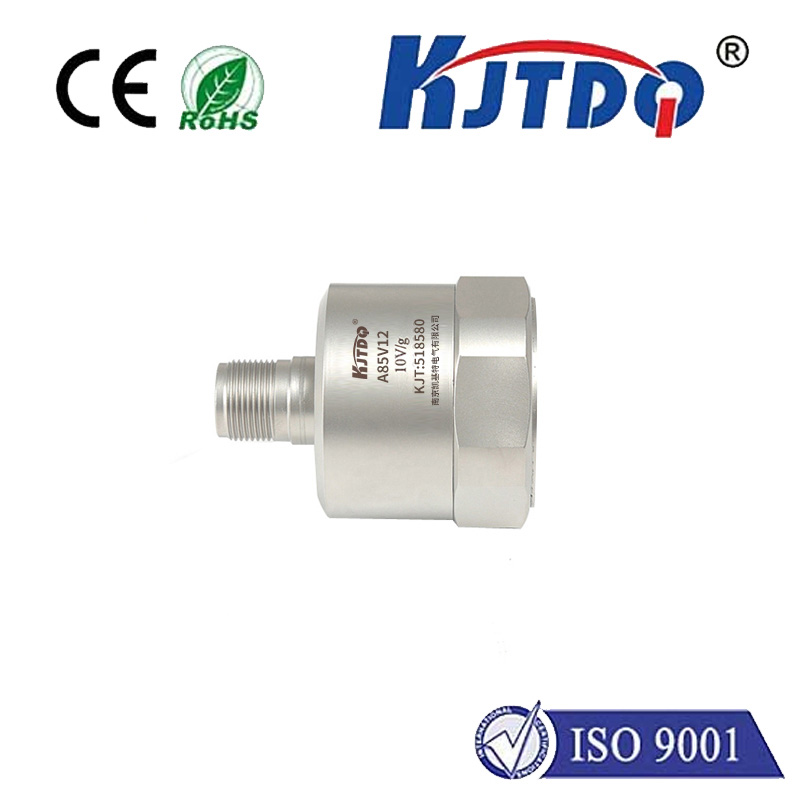

This series of acceleration sensors are designed for monitoring low and extremely low frequencies of earthquakes, large buildings and bridges. They have the advantages of high sensitivity and low background noise. They are suitable for building vibration monitoring, earthquake detection, bridge structure testing, ground and foundation vibration. Monitoring, geological structure research and other low-frequency vibration testing occasions.
| Dynamic Characteristics | |
Measuring range (peak value) | ±0.5g |
| Sensitivity(25℃) | 10V/g |
| Frequency response (±1dB) | 0.1-500Hz |
| Installation resonant frequency | ≥4500Hz |
| Lateral sensitivity ratio | ≤5% |
| Excitation voltage | 18-28VDC(A constant current source) |
| Constant current source excitation (mA) | 2-10mA |
| Output impedance | <100Ω |
| Full scale output (peak value) | ±5V |
| bias voltage | +9V~+12V |
| Install ground insulatio | >10^8Ω |
| Operating temperature | -40℃~+120℃ |
| Impact limit (peak value) | ±500g |
| Sensitive parts | Ceramic shear |
| Dimensions | φ45mm x48.5mm |
| Housing material | Stainless steel |
| output method | 2 Pin MIL-C-5015 |
| Installation method | 1/4-28 |
| weight | 440g |
| Appendix | |
| mounting bolts | 1/4-28 to M6 |
| cable | D03-3米 |
