KJT- KA-3267 Double circuit vertical travel Limit switch
KJT- KA-3267 Double circuit vertical travel Limit switch
KJT- KA-3267 Double circuit vertical travel Limit switch
KJT- KA-3267 Double circuit vertical travel Limit switch

KJT- KA-3267 Double circuit vertical travel Limit switch

  • Structural features:Double-circuit travel switch, stable and reliable, small in size, economical and practical
  • Shell material:Made of zinc alloy and reinforced plastic, sturdy structure
  • Protection level:IP66 protection, waterproof, oil-proof and dust-proof construction
  • internal structure:The built-in micro switch has a double reed design structure and has a long mechanical life.
  • Application scenarios:Suitable for drip-proof and splash-proof occasions, such as three-dimensional garages, CNC machine tools, printing machinery, etc.
★Double-circuit type travel switch, widely used

★Sturdy structure, composed of zinc alloy and reinforced plastic

★Small size, waterproof and oil-proof

★The built-in micro switch has a double reed structure design and has a longer mechanical life.

★With larger OT actions

★Conduit design for easy wiring

★Many types of actuators, easy to use

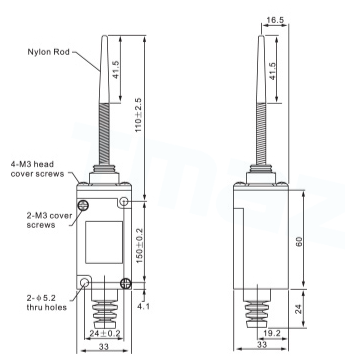

1


ModelKJT3205320832093212321332143267326832703289
Operating forceOF(max)750G-CM750G-CM750G-CM750G-CM900G-CM900G-CM150G150G150G550G-CM
ResilienceRF(Min)100G-CM100G-CM100G-CM200G200G200G30G30G30G100G-CM
Pre-tripPT(Max)2020201.8mm1.8mm1.8mm30mm30mm30mm20
Trigger positionTarget(±10%)22.5°22.5°22.5°2.0mm2.0mm2.0mm22.5°22.5°22.5°22.5°
Stroke movement resolutionMD(Max)1010101.2mm1.2mm1.2mm14141414
AftertouchOT(Min)7575754.0mm4.0mm4.0mm20mm20mm20mm75
Cumulative total tripTT(min)9595955.8mm5.8mm5.8mm50mm50mm50mm95


Double disconnect mechanical functionINO+INC force disconnect buckle action forced disconnect fast movement
Rated voltage/current Rated voltage/current10(4)A, 125, 250VAC/6(2)A, 380VAC inductive load, residual φ=0.4
contact resistance contact resistanceInitial <10mΩ, tested <30mΩ
Insulation resistance500mΩ minimum at 100VDC
Dielectric strengthAC 200VAC/minute between bare metal/terminal, ground and counter pole
Electrical life500,000 at 10A 250VAC resistive
Mechanical life20,000,000
operating speed120 /Minute
Waterproof Or dustproof abilityIP66(Pressure water column level)
rising temperatureAt rated voltage/current, up to 30°C over the entire ambient temperature range
standardsCENELEC EN 50041,EN 50047,IEC 337-1,VDE 0660
operating temperature-25°C~+80°C
storage temperature-25°C~+80°C
humidityMaximum 95° relative humidity (no dew)
Impact coefficientImpact resistanceFree position 10G Overtravel position 30G
Vibration frequencyMAX 55Hz
Terminal screw torque6-8kg method-cm
Other screw torqueCover 12-14 kg ft cm/head 8-9 kg ft cm/installed 50-60 kg ft/cm
Copper wire sizeφ2 max
Cable diameter sizeφ9 Maximum value (if using cable IP 66 φ8-9)

2


3

2 (4)

4

2 (1)
