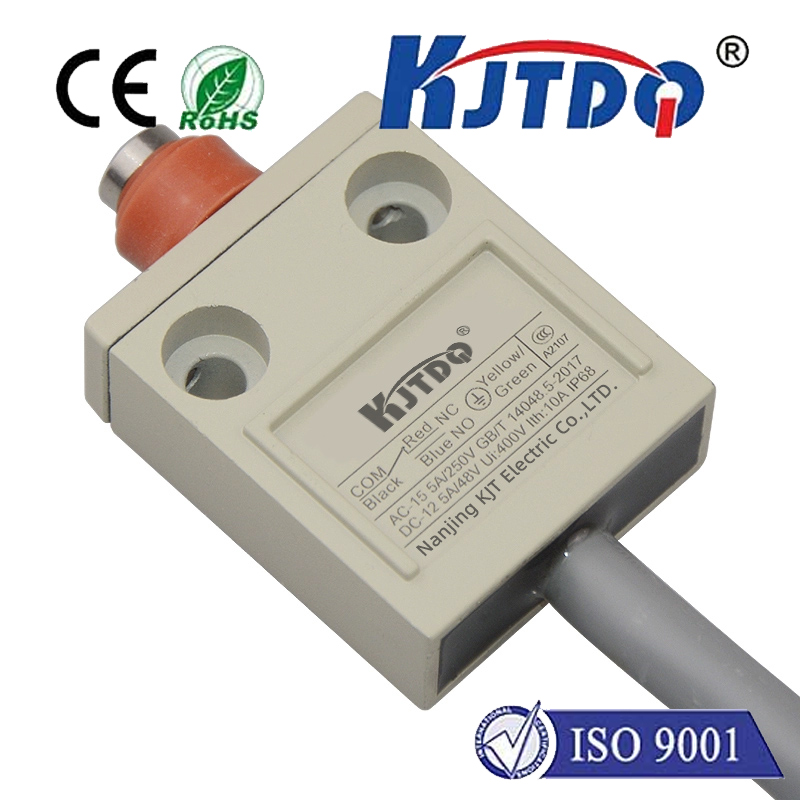

KJT Waterproof travel switch has the following characteristics
■Aluminum alloy casting shell, sturdy and durable, with high mechanical strength;
■ Contact components are imported, and the contact material is silver alloy, with quality assurance;
■ IP67 high-level protection, with waterproof, oil-proof and dust-proof structure, and can work underwater;
■ Comes with 3M long cable to facilitate user wiring;
■ Suitable for open-air equipment, shield equipment, painting equipment, etc. in the wild or in situations where waterproof and oil-proof requirements are relatively high.
| Rated voltage | 5A 125V,3A 250VAC |
| operating speed | 1mm~1m/s |
| operating frequency | Mechanical: 120 times/min |
| Electrical: 30 times/min | |
| Contact resistance | <15m Ω |
| Insulation resistance | 100Ω or more (below 500VDC) |
| Withstand voltage | Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute |
| Between terminal and ground: 1,500VAC, 50, 60Hz for one minute | |
| Between terminals and no-current metal: 1,500VAC, 50/60Hz for one minute | |
| vibration | Action durability: 10~55Hz, 1.5mm double amplitude |
| impact | Mechanical durability: 1000m/s2 or more (about 30G or more) |
| Malfunction durability: 500m/s2 or more (about 30G or more) | |
| ambient temperature | -10~+70 ℃ |
| humidity | Maximum 95%RH |
| Service life | Mechanical: more than 10 million times Electrical: more than 200,000 times |
| Protection level | IEC:IP67 |
| weight | About 360g (cable length 3m) |

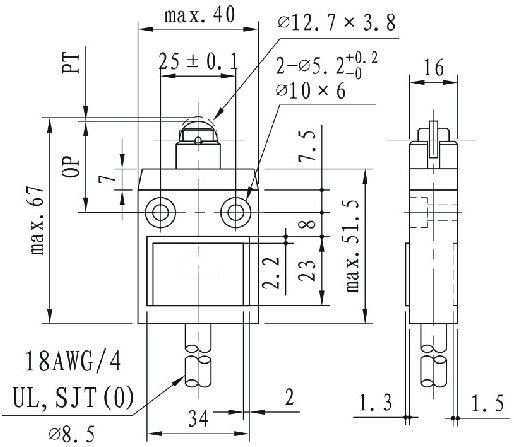

| Type | KH-4212 |
| Max OF | 1200gf(5.69N) |
| Min RF | 450gf(1.47N) |
| Max PT | 1.8mm |
| Min OT | 3mm |
| Max MD | 0.2mm |
| OP | 28.5 ± 1mm |
