DI5005 DIA3010-YPKG Compact Speed Monitor
- Nominal voltage [V]：10...36 DC
- Current consumption [mA]：< 15
- Reverse polarity protection：是
- Rated current (continuous) [mA]：250
- Rated current (peak) [mA]：250

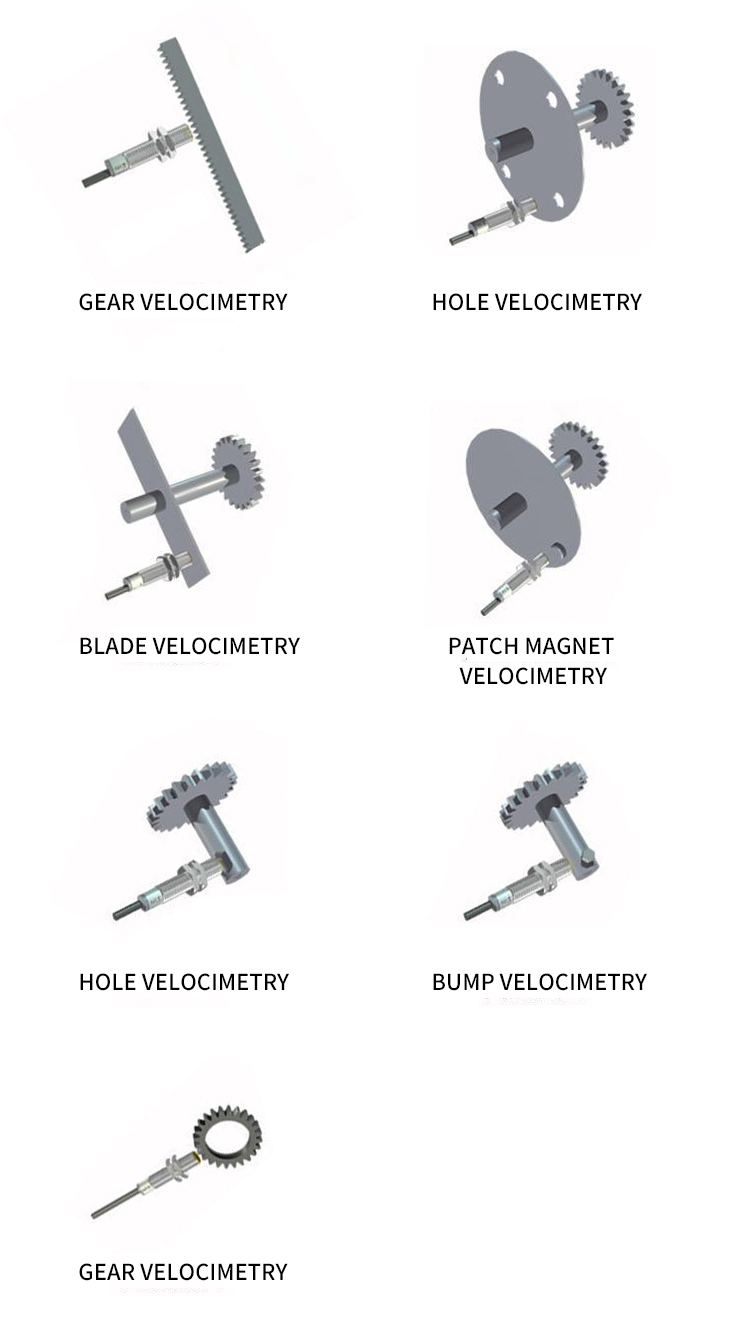

Kaijit speed control switch products are mainly developed according to the actual needs of customer sites. The products have a wide range of electricity, and can be applied to 24VDC─110VAC─220VAC (different voltage levels are configured with intermediate relays of different voltages), bringing unified purchasing to users. Easy installation and good interchangeability. The product can effectively and timely handle electrical and process failures such as stalling, jamming, overloading, slow rotation, belt slipping, transmission chain (belt) falling off transmission shaft breakage, etc. that often occur in motors and mechanical transmission devices. It can play a role in ensuring production and maintaining equipment.
.
| Product Paramenters | |
| application | Simple evaluation of rotational and linear motion underspeed; blocking |
| Switch function | The output switches during the start-up delay if (Factual) is greater than (Fpreset) |
| Electrical Design | DC PNP |
| Switching output | Normally open |
| Nominal voltage [V] | 10...36 DC |
| Current consumption [mA] | < 15 |
| Reverse polarity protection | Yes |
| Rated current (continuous) [mA] | 250 |
| Rated current (peak) [mA] | 250 |
| Voltage drop [V] | < 2.5 |
| Short circuit protection | YES |
| Overload protection | YES |
| Trigger sensing distance [mm] | 10 |
| Correction coefficient | Mild steel = 1 / Stainless steel approx. 0.7 / Brass approx. 0.5 / Aluminum approx. 0.4 / Copper approx. 0.3 |
| Setting range [pulses/minute] | 5...300 |
| Adjustment of switch point | Multiturn potentiometer |
| Hysteresis [% of Sp] | 10 |
| Start delay [s] | 15 |
| Damping frequency (maximum) [pulses/min] | 15000 |
| Ambient temperature [°C] | -25...80 |
| Protection | IP 67 |
| Average time TF [a] | 898 |
| Install | Can be mounted flush |
| Shell material | Brass special coating; PBT (Pocan) |
| Weight [kg] | 0.276 |
| Input pulse indicator | yellow |
| Output status indicator light | green |
| Connection | PVC cable / 2 m; 3 x 0.5 mm² |
Features

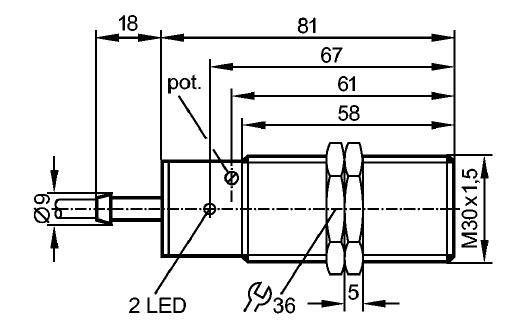

Compact speed monitor M30
diameter
M30 x 1.5
cable
Sensing distance 10 mm [f]
Can be mounted flush
