DI0004 Compact Speed Monitor
DI0004 Compact Speed Monitor

DI0004 Compact Speed Monitor

  • Nominal voltage [V]::20...250 AC/DC
  • Reverse polarity protection::
  • Protection level: :II
  • Rated current (continuous) [mA]::350 AC (...50 °C) / 250 AC (...80 °C) / 100 DC
  • Rated current (peak) [mA]: :2200

  KJT speed control switch products are mainly developed according to the actual needs of customer sites. The products have a wide range of electricity, and can be applied to 24VDC─110VAC─220VAC (different voltage levels are configured with intermediate relays of different voltages), bringing unified purchasing to users. Easy installation and good interchangeability. The product can effectively and timely handle electrical and process failures such as stalling, jamming, overloading, slow rotation, belt slipping, transmission chain (belt) falling off, transmission shaft breakage, etc. that often occur in motors and mechanical transmission devices. It can play a role in ensuring production and maintaining equipment.

参数

Product Paramenters
applicationSimple evaluation of rotational and linear motion underspeed; blocking
Switch functionThe output switches during the start-up delay if (Factual) is greater than (Fpreset)
Electrical DesignAC/DC
Switching outputNormally open
Nominal voltage [V]20-250,AC/DC
Protection levelII
Reverse polarity protectionNo
Rated current (continuous) [mA]350 AC (...50 °C) / 250 AC (...80 °C) / 100 DC
Rated current (peak) [mA]Rated current (peak) [mA] 2200
Minimum load current [mA]10
Leakage current [mA]< 2.5
Voltage drop [V]< 6.5
Short circuit protectionNO
Overload protectionNO
Trigger sensing distance [mm]10
Correction coefficientMild steel = 1 / Stainless steel approx. 0.7 / Brass approx. 0.5 / Aluminum approx. 0.4 / Copper approx. 0.3
Setting range [pulses/minute]5...300
Adjustment of switch pointMultiturn potentiometer
Hysteresis [% of Sp]10
Start delay [s]15
Damping frequency (maximum) [pulses/min]15000
Ambient temperature [°C]-25...80
ProtectionIP 67
Average time TF [a]898

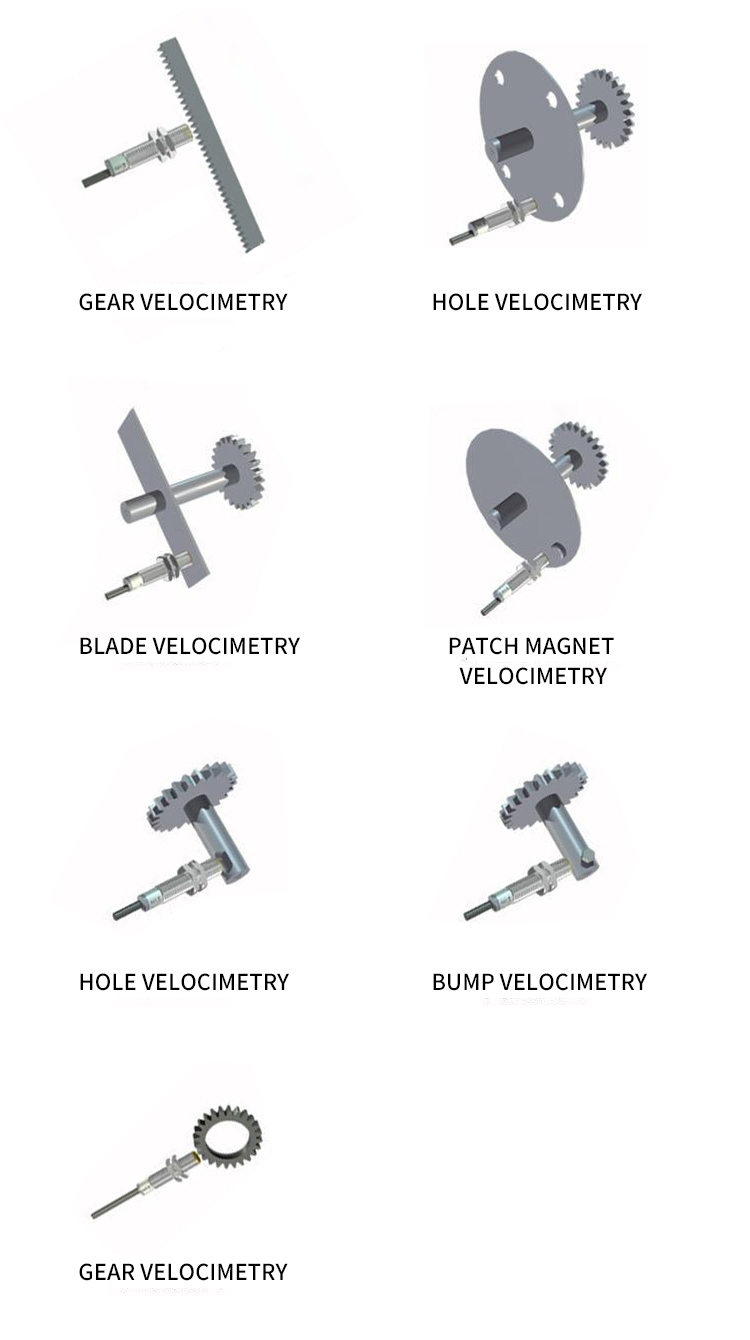

InstallCan be mounted flush
Shell materialBrass special coating; PBT (Pocan)
Weight [kg]0.256
Input pulse indicatoryellow
Output status indicator lightgreen

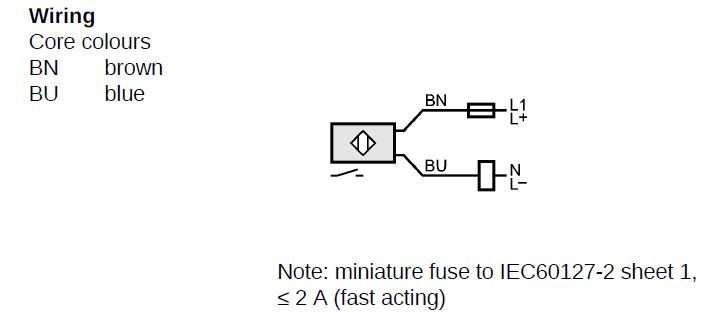

ConnectionPVC cable / 2 m; 3 x 0.5 mm²

直径速度传感器

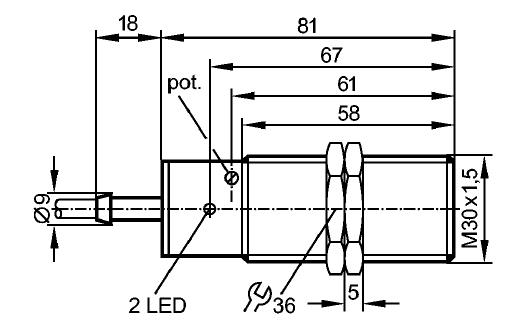

外观尺寸

Product Features

Compact Speed Monitor M30

Diameter

M30 x 1.5

Cable

Trigger sensing distance 10 mm [f]

Flush mountable
