DI6001 DGA4012-WPKG/American Compact Speed Monitor
- Nominal voltage [V]:：10...36 直流
- Rated current (continuous) [mA]: ：< 15
- Reverse polarity protection:：是
- Protection level: ：II
- Rated current (continuous) [mA]:：250 / 15
- Pressure drop [V]：< 2.5
KJT speed control switch products are mainly developed according to the actual needs of customer sites. The products have a wide range of electricity, and can be applied to 24VDC─110VAC─220VAC (different voltage levels are configured with intermediate relays of different voltages), bringing unified purchasing to users. Easy installation and good interchangeability. The product can effectively and timely handle electrical and process failures such as stalling, jamming, overloading, slow rotation, belt slipping, transmission chain (belt) falling off, transmission shaft breakage, etc. that often occur in motors and mechanical transmission devices. It can play a role in ensuring production and maintaining equipment.

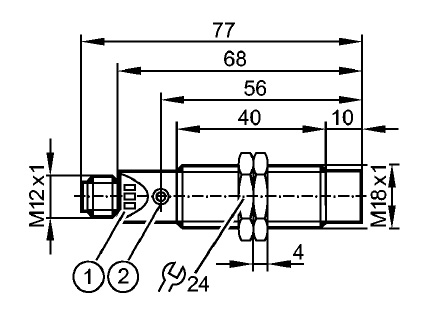

1: 3 LEDs
2: Setting button
Product Features
Compact Speed Monitor M18
DGA
Switching and pulse outputs
Trigger sensing distance 12 mm [nf]
Not flush mountable
