KJT-FS50 series long-distance photoelectric speed sensor
KJT-FS50 series long-distance photoelectric speed sensor

KJT-FS50 series long-distance photoelectric speed sensor

  • Reflection mode: diffuse reflection, reflective plate type, through-beam type
  • Light source: infrared LED (880nm)
  • Output mode:PNP NO/NC
  • Power supply voltage:12…24VDC
  • Response time:≤1ms
  • Repeat accuracy:≤5%

  Kaijit photoelectric speed sensor is a multi-functional photoelectric speed sensor product independently developed and produced. It integrates photoelectric conversion circuit, amplification circuit, logic processing circuit and drive output circuit. Compared with similar foreign products, it has the advantages of more functions and low price. Compared with similar domestic products, it has the characteristics of fast response, high precision and stable quality. Suitable for robots, automated production lines, lathes, manipulators and robotic arm components, food processing equipment, printing equipment and other industrial machinery and equipment.

参数

Technical parameter

Model

50*50*17 mm


Diffuse Reflection

30cm

1m
1m

Retro Reflection

50cm

1.5m2m

through beam

70cm

2m5m
Operating voltage

12-24VDC

Light SourceInfrared Led(880nm)

Output

PNP/NO/NC

Consumption current

≤25mA

Response time

≤8.2ms
Return difference5…20%
Voltage drop≤2.5V
Repeat accuracy

≤3%

Output instructionsYellow LED
Protection circuitSurge, reverse polarity, short circuit protection
Operating temperature-15°C- 55°C
Environment humidity35 to 95% RH
Shell materialPC/ABS

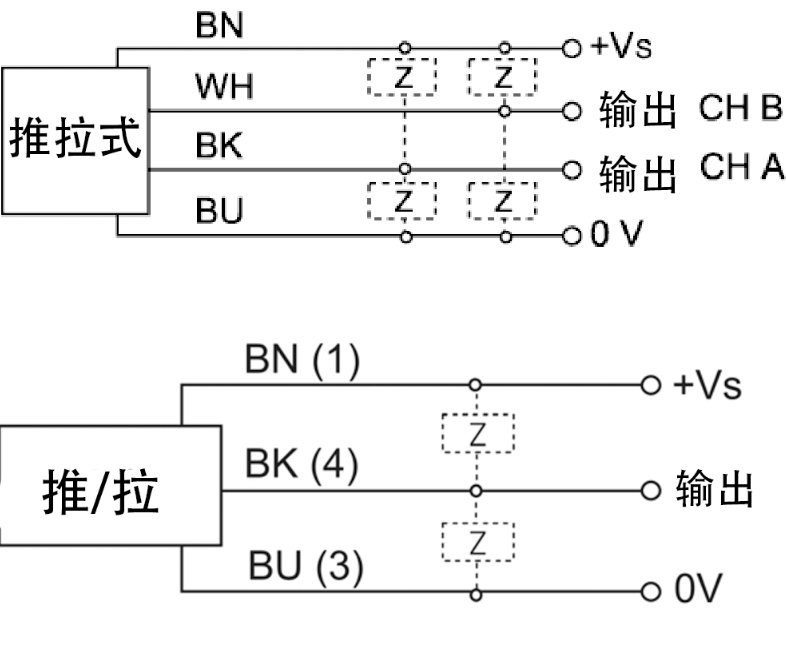

Wiring2M PVC cable
Protection levelIP65


外观尺寸

尺寸

微信图片_20230913140641
