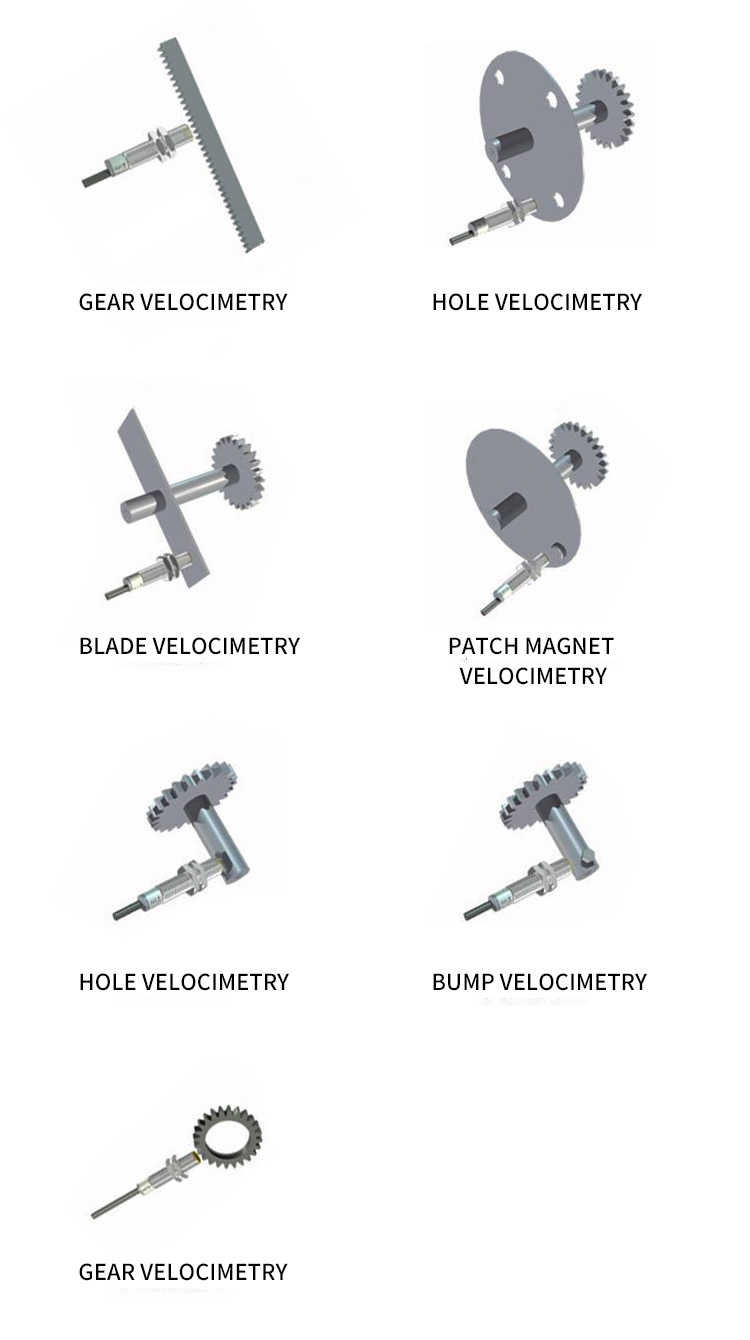

The core component of Kejit gear speed sensor uses magnetoresistance as the detection component, and then uses a new signal processing circuit to reduce noise and improve functions. By comparing with the output waveforms of other types of tooth speed sensors, the error of the measured speed is extremely small and the linear characteristics are very consistent. The sensing objects are magnetic materials or magnetically permeable materials, such as magnetic steel, iron and electrical steel. When the magnetic or permeable material with protrusions (or depressions) on the measured object rotates as the measured object, the sensor outputs a pulse signal related to the rotation frequency to achieve the purpose of speed measurement or displacement detection.
| voltage | 8-30VDC |
| Current consumption | 适合大15mA |

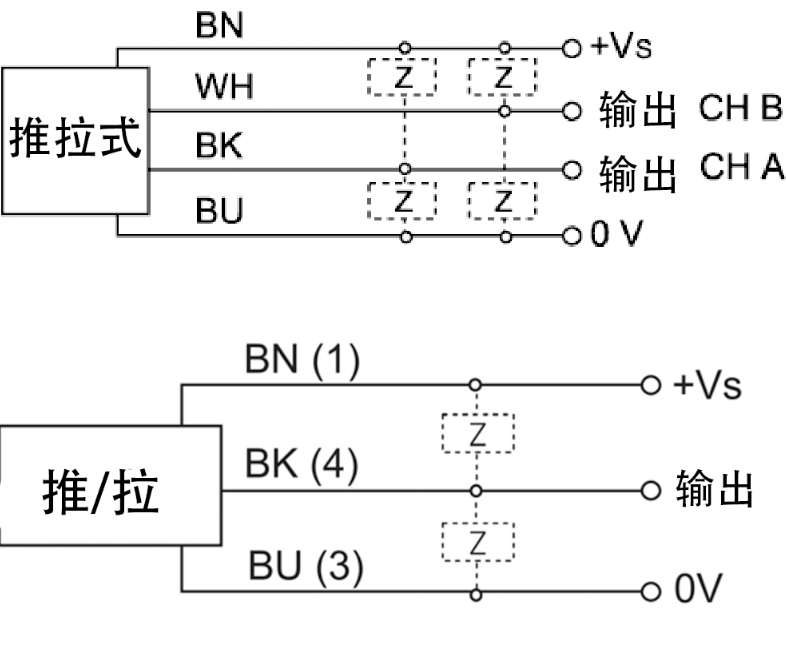

| Output signal Vo | push-pull output Imax=+/-20mA,Ulow<2.5V,Uhigh>Usupply-3.5V |
| Frequency Range | 0-15KHz |
| Air gap | Modulus1：0.2to0.6mmm；Modulus2：0.2to1.5mm |
| Earthquake resistance | 5gn（5…2000Hz范围内） |
| Impact resistance | 50gn（20msduring 20ms, half sine wave） |
| IP | Sensor head：IP68；cable connection and connector：IP67 |
| temperature range | -20℃…+85℃ |
