KJT-DRG-IU is a gyroscope (angular velocity sensor) based on micromechanical principles. It is a miniature inertial device mainly used to measure the angular velocity of moving objects. The silicon ultra-fine precision ring sensing technology inside the product makes it have the characteristics of high performance, waterproof, anti-vibration, light weight, anti-electromagnetic interference, etc., continuous in-machine self-test technology, filtering algorithm and the first use of resonance elimination technology in China , which solves the impact of ordinary gyroscopes on data due to surrounding noise or vibration interference sources. KJT-DRG-IU also introduces international temperature sensing compensation technology to solve the problem of drift effects, and has over-temperature stability and long service life. Features: Achieve leading technology in domestic similar products.
The product is cost-effective, small, and has more advantages than fiber optic gyroscopes in application fields. It is now widely used in automobiles, military industry, navigation, position control and attitude control of moving objects, and other occasions that require precise angle measurement!
●Dual-axis inclination measurement
●Measuring range ±1～±90° optional
●Accuracy: refer to the performance table
●DC 9～36V wide voltage input
●Wide operating temperature -40℃～+85℃
●Resolution 0.01°
●IP67 protection level
●High vibration resistance>2000g
●Direct lead interface
●Dimensions: 90×40×26mm (can be customized)
●Output mode RS232/RS485/RS422/PWM/TTL/CAN optional

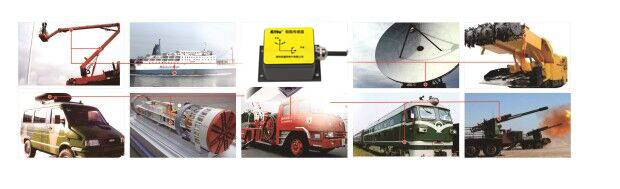

●Navigation ●Car navigation
●Stable platform ●Car safety system ●Remote control helicopter
●Vehicle-mounted satellite antenna equipment ●Industrial control ●Robots
●3D virtual reality ●Incline (angular velocity) sensing equipment related to ship electronic magnetic needle error compensation
●Instruments and equipment ●GPS combination ●Camera stabilization
