Explosion-proof photoelectric sensor FS50
- Protection current：3A
- Response time：<1.5ms
- Explosion-proof grade：CT6/DIP A20/A21

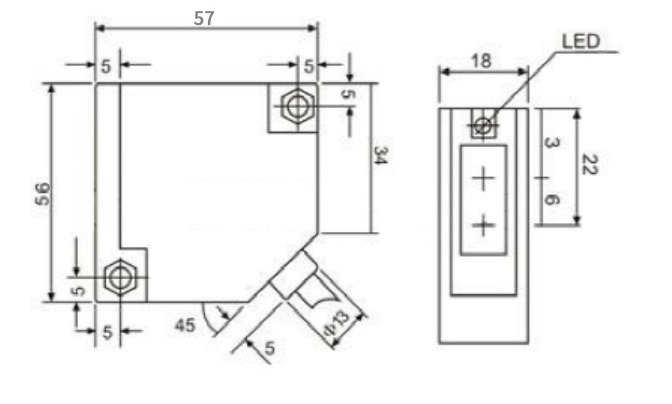

- size：57*22*56mm
- Protection level：IP67
- Shell material：Stainless steel housing
Explosion-proof design, IP67 protection level, suitable for strong light, high unit rated power, smart chip responsiveness, waterproof and oil-proof, strong anti-interference performance, stable operation and anti-interference
Product Name | Explosion-proof photoelectric sensor FS50 | ||
Protection current | 3A | ||
Response time | <1.5ms | ||
Maximum sensing distance | Through-beam type 10M Mirror reflector type 5M 30CM/50CM/100CM | ||
Explosion-proof grade | CT6/DIP A20/A21 | ||
size | 57*22*56mm | ||
Protection level | IP67 | ||
Shell material | Stainless steel housing | ||
| light source | Infrared LED/Laser | ||
Standard line length | 2m | ||
| No-load current | ≤30mA | ||
| Voltage drop | ≤2.5V | ||
| Sensitivity adjustment | Trimmer 1tum | ||
| Response time | ＜5ms | ||
| Short circuit protection | Yes | ||
| Power-on protection | Yes | ||
| Operating temperature | -25°C- 55°C | ||
| Ambient humidity | 35 to 85% RH | ||
| Suitable for strong light | ≤10.000Lux | ||
| Protection level | IP67 | ||
