When a metal object approaches the sensing surface of the analog sensor, the LC oscillation of the analog sensor is attenuated. This change is used to convert the current output. The size of the output current is directly related to the distance between the metal object and the sensing surface of the analog sensor. Or directly proportional to the relationship (please refer to the relationship between proximity distance and output current curve).
Standard detection object: Use 1mm thick square steel sheet, electrical soft iron (i.e. A3 steel) whose side length is equal to the diameter of the sensing surface of the analog sensor.
Inductive proximity sensors with analog output are electronic signal generators for measuring position deviations and are used in a wide range of applications.
For example:
1.Measurable bending and deflection
2.Measurable width height
3. Controllable dimensional stability
4. Controllable positioning
5. The centering rate or eccentricity can be controlled
Model
| KJT-WJ18A | KJT-WJ18B | KJT-WJ18C | KJT-WJ18D |

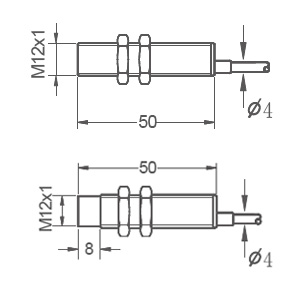

| Installation type | Flush
| Non-Flush
| Flush
| Non-Flush
|
| Sensing distance | 1…4mm | 0…7mm | 7…20mm | 7…20mm |
Relationship between distance and output current | See graph | See graph | See graph | See graph |
| Wiring diagram | PNP | PNP | PNP | PNP |
| connect | φ5 Dingqing extrusion line 2M | φ5 Dingqing extrusion line 2M | φ5 Dingqing extrusion line 2M | Built-in binding posts |
| Foreign product replacement models | R-AIPM/XVP | DPA-4 | BAW030-PF-1-K | BI15-CP40-LU |
Remark: 1. For other technical data, please contact us. 2. The standard detection bodies of various analog sensors are close to the sensing surface. Under specified conditions, their usable distance is proportional to the output current. Please refer to the prepared curve chart for details of each curve.  |
