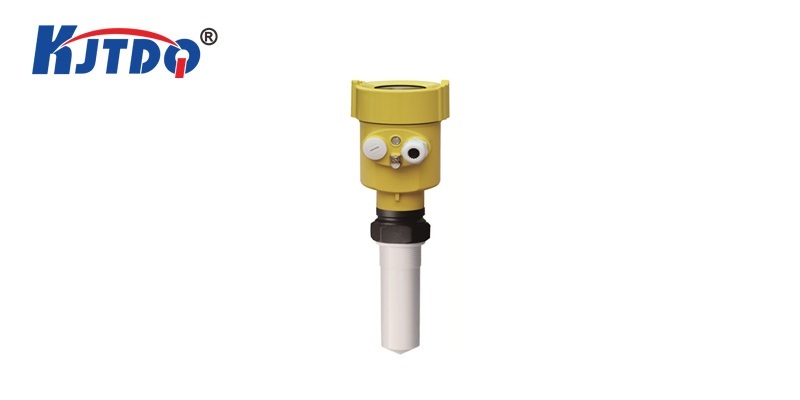

KJT Series intelligent radar level/liquid level meter high frequency radar
KJT Series intelligent radar level/liquid level meter high frequency radar

KJT Series intelligent radar level/liquid level meter high frequency radar

Specificationhigh frequency radar
Measuring mediumsolid, liquid
Measuring range0m~70m
process connectionFlange, thread
Medium temperature-40℃~250℃
process pressure-100kPa~4.0MPa
Signal output4mA~20mA DC/HART

(two-wire system)

RS485/Modbus

Live displayFour-digit LCD, programmable
Accuracy±3mm
Repeatability±1mm
Frequency26GHz
Antennatrumpet
power Two-wire system(24V DC)

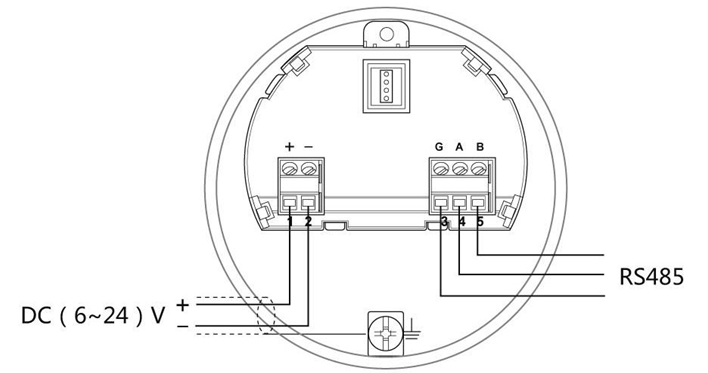

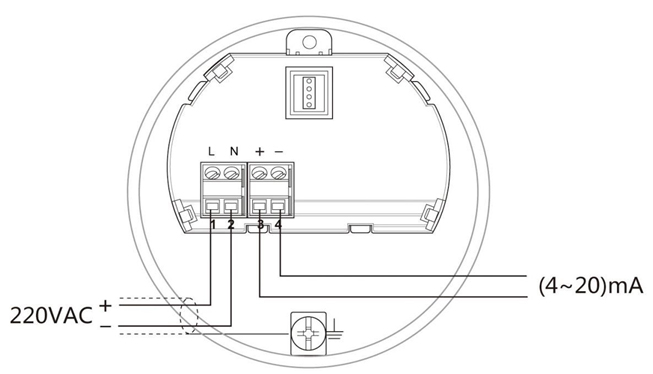

Four-wire system(24V DC/220V AC)
ShellAluminum/Plastic
Protection levelIP67
ApplicationTemperature-resistant, pressure-resistant, slightly corrosive liquid

Shell

Seal between housing and housing coverSilicone Rubber
shell windowpolycarbonate
Ground terminalStainless steel

Supply voltage

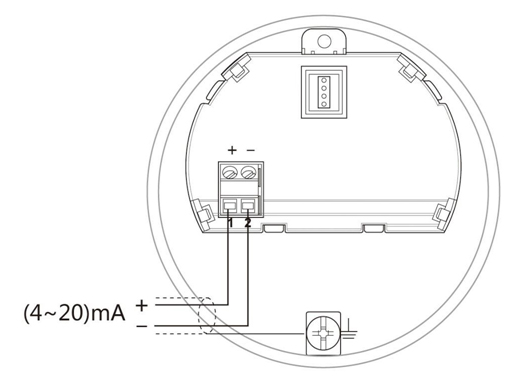

Two-wire systemStandard type(16~26) V DC
Intrinsically safe(21. 6~26. 4) V DC

Power consumptionmax 22.5mA / 1W

Allow ripple

-<100HzUss < lV

-(100~100K) HzUss < l0mV

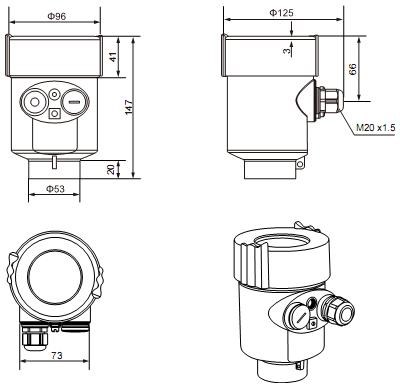

Cable parameters
Cable entry/plug1x M20xl.5 cable entry

1 blind plug M20xl.5

TerminalsConductor cross section 2.5mm²

Output parameters
output signal(4~2 0) mA

ProtocolHLET

resolution1. 6μA

Fault signalCurrent output remains unchanged;


20.5mA


22mA;


3.9mA

Integration time(0~50)s,Adjustable
blind areaAntenna end
Maximum measuring distance80米
microwave frequency                             6GHz/26GHz/500M-1.8GHz
Communication Interface                        HLET communication protocol
       Measurement interval                                     Approximately 1 second (depends on parameter settings)
Adjust the time                                              Approximately 1 second (depends on parameter settings)
display resolution                                                1mm

Working storage and transport temperature                             (-40~100) ℃
Process temperature (temperature of the antenna section)(-40~250)℃

  pressure                                                            Max. 4MPa
Earthquake resistant                                                      Mechanical vibration l0m/s², (10~150)Hz
