KJT-U18B Ultrasonic sensor 300mm
KJT-U18B Ultrasonic sensor 300mm
KJT-U18B Ultrasonic sensor 300mm
KJT-U18B Ultrasonic sensor 300mm
KJT-U18B Ultrasonic sensor 300mm

KJT-U18B Ultrasonic sensor 300mm

  • ●:Compact design facilitates equipment integration
  • ●:Can be flexibly matched to application requirements through multiple parameter setting methods and adjustable sensitivity
  • ●:Synchronous and multi-channel working methods can avoid mutual influence of sensors and ensure reliable measurement results.
  • ●:Low-cost area monitoring via sensor synchronization
  • ●:Offline sensor parameter settings on the display enable pre-configuration and save device commissioning time
  • ●:Built-in temperature compensation for high measurement accuracy
  • ●:Setup mode recognizes all objects between the sensor and the teach background

  Ultrasonic sensors use the characteristics of sound waves to provide a contactless and accurate detection solution for detecting the status and distance of objects. By emitting mechanical sound waves with high frequency, the sensor receives the sound waves reflected back from the object. By calculating the time or energy between transmitting and receiving the sound waves, the precise distance or status of the target object is obtained. Ultrasonic sensors are different from ordinary proximity switches and photoelectric sensors. Compared with inductive or capacitive proximity switches, its detection distance is longer. Compared with photoelectric sensors, it can be used in harsher environments and is not affected by the color of the target, airborne dust, water mist, etc. Suitable for detecting different

1


modelKJT-U18B-300
examination range30-300mm
blind area0-30mm
resolution0.1mm
Repeat accuracy±0.15% of full scale value
Accuracy±1%(Built-in temperature drift compensation)
Response time20ms
On-off level33Hz
switching hysteresis2mm
Power-on delay<500ms
Operating Voltage10-30V DC, UB≥12V
LED red lightAlways on when there is no target, flashing when there is no target during learning
LED green lightThe target is always on when detected, and the target flashes during learning.
Load impedanceI/0~300Ω,U/>1kΩ
Overload protection200mA,Red light and green light flashing at the same time
No-load current≤30mA
Voltage drop≤2V
input typeWith synchronization function and learning function
MaterialNickel plated copper sleeve, plastic fittings, glass filled epoxy resin
Protection levelIP67
Connection Type5 core M12 connector
ambient temperature-25℃~+70℃(248~343K)
Storage temperature-40℃~+85℃(233~358K)


2


U18B300

U18B3001

U18B3002

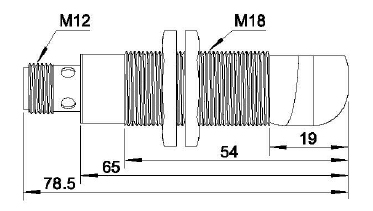

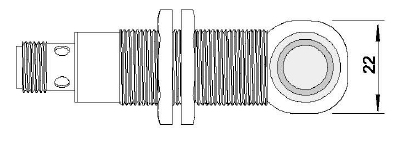

chaoshengbochicuntu

3

chaoshengbojiexiantu

chaoshengbojiexiantu2


4

chaoshengboyingyongchangjingtu
