Widely used in petroleum, chemical, textile, rubber, building materials, electric power, metallurgy, medicine, food and other automated testing and control fields. Table head, you can modify the input index number and range range through the table head button.
SAQC-1600 explosion-proof integrated temperature transmitter SAQC-1604 explosion-proof - body temperature transmitter using PT100 sensor digital display head, 4 - 20mA output, insertion depth can be customized according to customer needs, can be threaded fixed or flange mounted, but also digital on-site display of the temperature, high clarity, no visual error.
Can protect the tube lined with PTFE anti-corrosion. Two-wire output, no compensation wire; strong anti-interference ability, good performance of remote transmission; simple structure, reasonable and easy to install; miniaturization, safety and reliability, long service life; two-wire, three-wire input method through the; digital display field display temperature, high clarity, no visual error.
| Enter | Thermal resistance Pt100 | |
| Temperature measurement range | -200℃-450℃（Thermal resistance） | |
| Accuracy level | 0.5％FS | |
| output signal | 4-20mA | |
| Supply voltage | 24VDC | |
| load voltage | 0-500Ω | |
| ambient temperature | -20—85℃ | |
| interface | M20×1.5、M16×1.5 Or G1/2\G1/4 | |
| Protective tube material | 1Cr18Ni9Ti | |

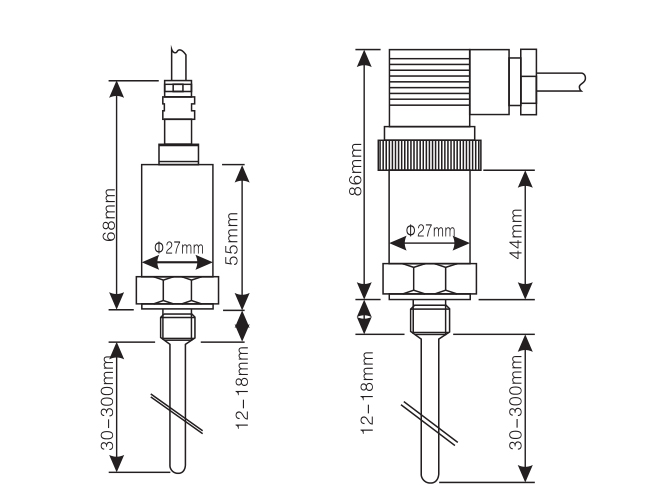

| Get involved | 30mm/50mm/100mm/150mm/200mm/250mm/300mm | |
| Type | Product Description | |
| KJT-SAQC-1604 | Integrated temperature transmitter | |
| output method | E | 4-20mA |
| V5 | 0-5V | |
| V10 | 0-10V | |
| Accuracy level | 1 | Level 0.5 |
| 2 | Level 0.2 | |
| process connection | A | 20*1.5 |
| B | 16*1.5 | |
| Protective tube | 0 | 6 |
| 1 | 5 | |
| Display method | 0 | without display |
| M3 | LED meter display | |
| Power supply | A | DC24V battery powered |
| Measuring range | -200-450℃（Thermal resistance） | Customer choice |
