KJT-1604 series pressure transmitter is specially designed for the application in the field of industrial pressure measurement and its working conditions for the general use of occasions and the design and manufacture of this series of products using Germany's advanced pressure sensing manufacturing technology, the product by the high-precision diffusion silicon sensing or ceramic sensors and highly integrated electronic circuit and stainless steel shell, with a small size, high measurement accuracy, high immunity to electromagnetic interference, easy to install and adjust, and rugged and so on.
| type | clarification |
| KJT-1604 |
| General Pressure Transmitter |
| Appearance | G | High Temperature |
| M | Flange diaphragm type |
| Q | flush membrane |
| K | Hygienic clamp type |

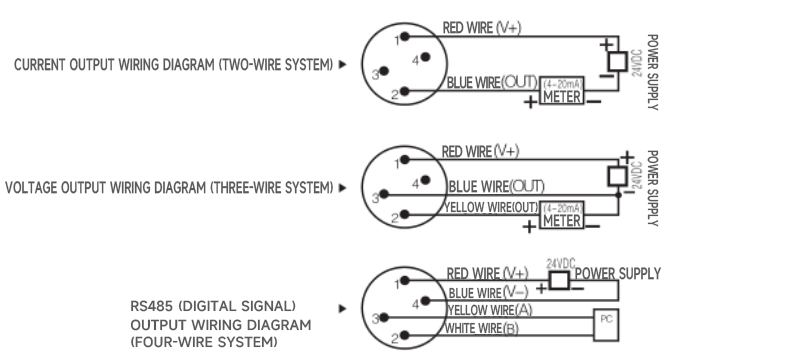

| signal output | E | 4-20mA |
| V5 | 0-5V |
V10
| 0-10V |
| output level | 1 | 0.5 level |
| 2 | 0.2 level |

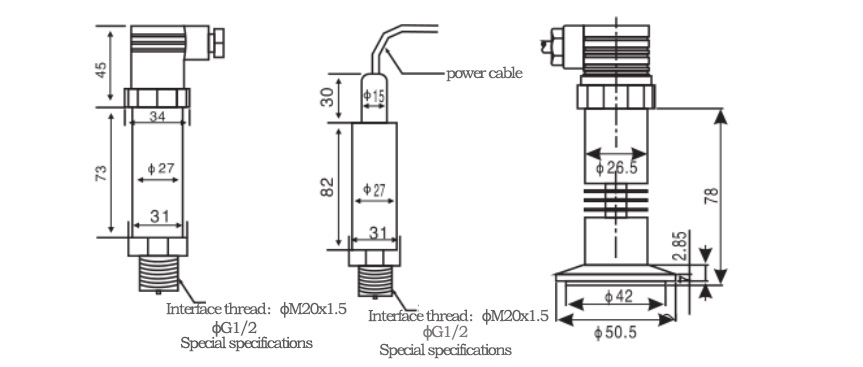

| process connection | A | 20*0.5 |
| B | G1/4 |
| Display Mode | 0 | Without display |
| M3 | With LED header display |
| Power supply method | A | DC24V battery powered |
| Measurement range | -100kPa-60MPa | Customer Choice |
