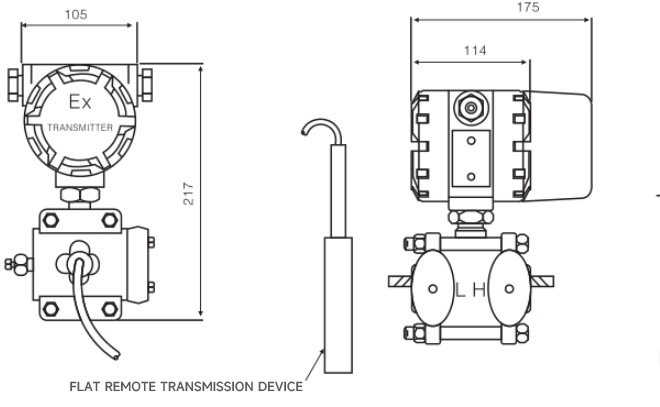

The transmitter is transformed into a remote differential pressure or pressure transmitter with a remote sealing device.
The remote transmitter can avoid direct contact between the measured medium and the diaphragm of the transmitter.
Scope of application:
1. The measured medium has corrosive effect on the connector and sensitive components of the transmitter.
2. Need to isolate the high temperature measured medium from the transmitter.
3. The measured medium has solid suspensions or high viscosity easily blocked transmitter joints and pressure chamber.
4. Hygienic conditions must be protected to prevent contamination.
Measuring range:
Provide a variety of structural materials, telemetry device components welded structure reliability. Liquid-filled cavity low volume design to
reduce the temperature impact, according to user requirements, filled with ordinary silicone oil using temperature range of -40 +149 ° C;
filled with high-temperature silicone oil using temperature range of 15-315 ° C, see Table 23.

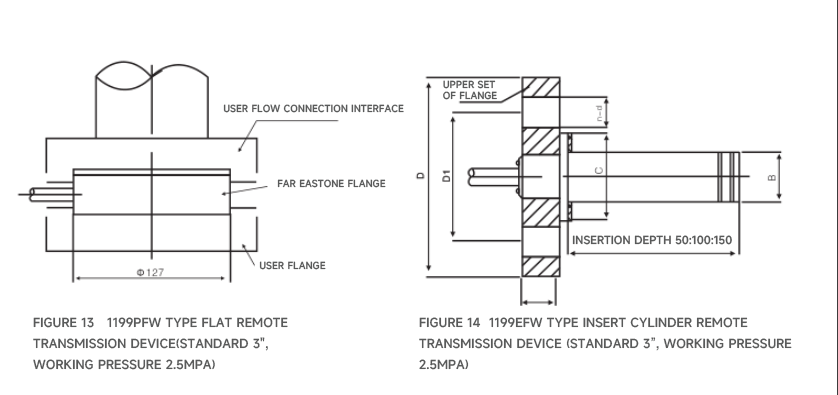

Remote transmission device working pressure. The upper limit is the user selects the rated value of the telemetry device; the working pressure
shall not be lower than 3.5kPa (absolute pressure). For corrosive media, select the isolation diaphragm material see table 25
(only for user selection reference).
