KTJ-D200 Digital Remote Pressure Gauge
KTJ-D200 Digital Remote Pressure Gauge

KTJ-D200 Digital Remote Pressure Gauge

  • overload capacity:150%
  • sampling rate:5 times/second
  • Measuring medium:304 stainless steel compatible media
  • Accuracy Class:1% FS or 0.5% FS
  • operating temperature:-20-80℃
  • warning point:Full-range arbitrary setting
  • load capacity:380V/3A、 220V/5A、 24V/5A
  • Display Mode:High brightness LED digital tube
  • output signal:DC0- 10V or DC0-5V

1

KTJ-D200 stainless steel digital pressure gauge adopts metal stainless steel shell, beautiful appearance, durable, using two section 5 battery power supply, can be used continuously for more than a year, is a set of pressure, measurement, display as one of the high-precision, low-power digital pressure gauge, with anti-vibration, high display accuracy, long service life, automatic standby and other characteristics, easy to use, can replace the mechanical pressure gauge for portable pressure measurement, equipment supporting, standard pressure calibration equipment, and so on. It can replace mechanical pressure gauge, used in portable pressure measurement, equipment supporting, standard pressure calibration equipment and so on. It can be used in portable pressure measurement, equipment supporting, standard pressure calibration equipment and so on.


universal suffrageclarification

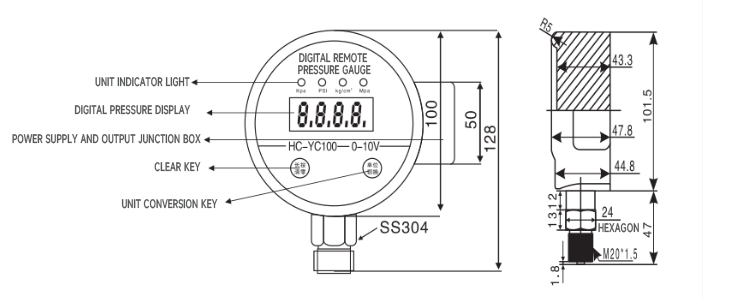

KTJ-D200
Digital Remote Pressure Gauge
output method050-5V output
100-10V output
clamshellAPlastic Engineering Housings
BStainless steel 304 housing
Accuracy Class11%
20.5%
process connectionA20*1.5
BG1/2
CG1/4
DOther orders are specified
Power supply methodWDC24V battery powered
Measurement range-100kPa-60MPaCustomer Choice



KJT-D200数字远传压力表
