KJT-Z1620 stainless steel digital pressure gauge adopts metal stainless steel shell, beautiful appearance, durable, using two section 5 battery power supply, can be used continuously for more than a year, is a set of pressure, measurement, display as one of the high-precision low-power digital pressure gauge, with anti-vibration, high display accuracy, long service life, automatic standby and so on, easy to use, can be used in place of the mechanical pressure gauge, for portable It can replace the mechanical pressure gauge and be used for portable pressure measurement, equipment supporting, standard pressure calibration equipment, etc. Wide range of applications.
| Type | Product Description | |
| KJT-Z1620 | Digital electric contact pressure gauge | |

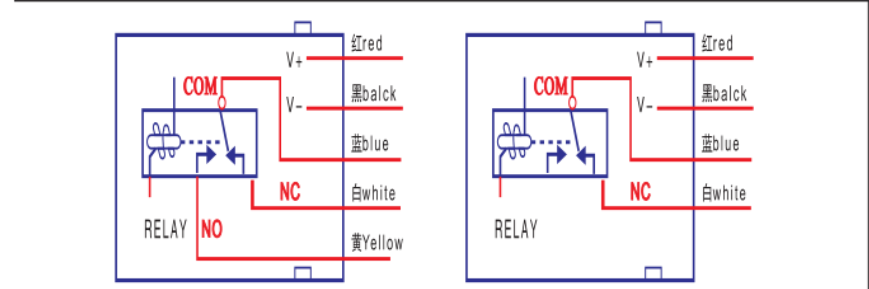

| output method | 1620 | Single relay output |
| 2 | Normally open | |
| 3 | NO+NC | |
| Communication output | 0 | No communication output |
| 8 | RS485 communication output | |
| Accuracy level | 1 | 1％ |
| 2 | 0.5％ | |
| process connection | A | 20*1.5 |
| B | G1/2 | |
| C | G1/4 | |
| D | Other orders are specified | |
| Power supply | W | DC24V battery powered |
| A | AC220V power supply | |
| B | AC380V power supply | |
| Measuring range | -100kPa-60MPa | Customer choice |
