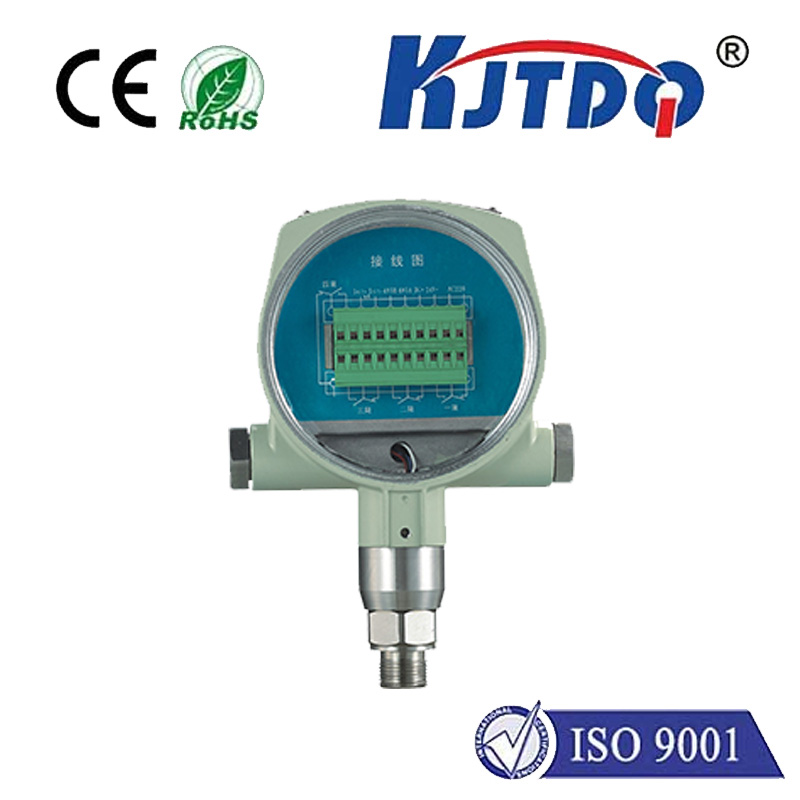

Intelligent pressure controller is an intelligent digital display pressure measurement and control product integrating pressure measurement, display, output and control. The product is all-electronic structure, the front-end with Geli membrane oil-filled piezoresistive pressure sensors, by the high-precision A/D conversion, by the microprocessor arithmetic processing, on-site display, and the output of - road analog and four switching quantities
The intelligent digital pressure controller is flexible in use, simple in operation, easy in debugging, safe and reliable. Widely used in hydropower, water, petroleum, chemical, machinery, hydraulic and other industries, the pressure of the fluid medium for on-site measurement display and control.
| universal suffrage | clarification | |
| KJT-C208 | Explosion-proof electric contact pressure gauge | |
| output method | 202 | Single relay output |
| 204 | Dual Relay Outputs | |
| 206 | Three relay outputs | |
| 208 | Four relay outputs | |
| 2 | normally open | |
| 3 | Normally Open + Normally Closed | |
| transformer output | 0 | no output |
| 2 | 4-20mA output | |
| Accuracy Class | 1 | 1％ |
| 2 | 0.5％ | |
| process connection | A | 20*1.5 |
| B | G1/2 | |
| D | Other orders are specified | |
| Power supply method | W | DC24V battery powered |
| A | AC220V power supply | |
| Measurement range | -100kPa-60MPa | Customer Choice |
