KJT-L1220AU intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure detection and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.
| Type | Product Description | |
| KJT-L1220AU | Axial Intelligent Digital Pressure Controller | |

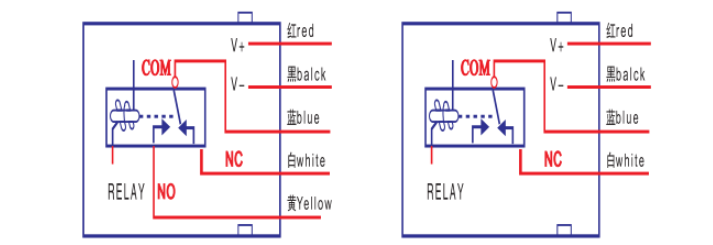

| output method | 1220AU | Single relay output |
| 2 | NO | |
| 3 | NO＋NC | |
| Transmission output | 0 | No output |
| 2 | 4-20mAoutput | |
| Accuracy level | 1 | 1％ |
| 2 | 0.5％ | |
| process connection | A | 20*1.5 |
| B | G1/2 | |
| C | G1/4 | |
| D | Other orders are specified | |
| Power supply | W | DC24Vbattery powered |
| A | AC220Vpower supply | |
| Measuring range | -100kPa-60MPa | Customer choice |
