KJT-Z1220C Intelligent Digital Pressure Controller can realize the control function of low pressure stop, high pressure start or low pressure start, high pressure stop Controller pressure range full range of return difference is adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure detection and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.
| Type | Product Description | |
| KJT-Z1220C | Intelligent digital pressure controller | |

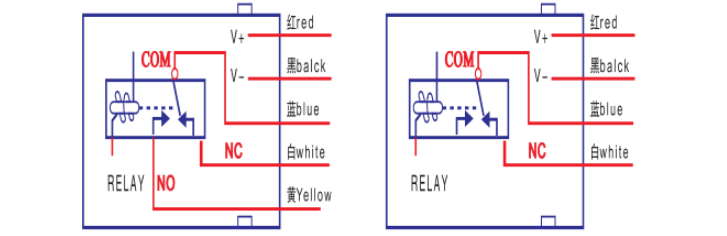

| output method | 1220C | Dual relay output |
| 2 | NO | |
| 3 | NO＋NC | |
| Transmission output | 0 | No output |
| 2 | 4-20mA output | |
| Accuracy Class | 1 | 1％ |
| 2 | 0.5％ | |
| process connection | A | 20*1.5 |
| B | G1/2 | |
| D | Other orders are specified | |
| Power supply | W | DC24V battery powered |
| A | AC220V power supply | |
| Measurement range | -100kPa-60MPa | Customer choice |
