KJT-L202 intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, pressure leakage protection, password protection, automatic pressure check and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.
| Type | Product Description | |
| KJT-ZL1220AU | Intelligent digital pressure controller | |

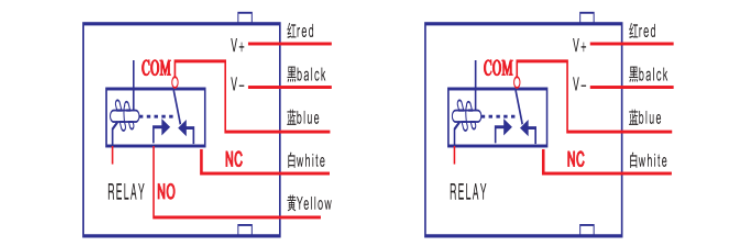

| output method | 202 | Single relay output |
| 2 | NO | |
| 3 | NO＋NC | |
| Transmission output | 0 | No output |
| 2 | 4-20mA output | |
| Accuracy level | 1 | 1％ |
| 2 | 0.5％ | |
| process connection | A | 20*1.5 |
| B | G1/2 | |
| C | G1/4 | |
| D | Other orders are specified | |
| Power supply | W | DC24V battery powered |
| A | AC220V power supply | |
| Measuring range | -100kPa-60MPa | Customer choice |
