KJT-L204AU Axial Intelligent Digital Pressure Controller
KJT-L204AU Axial Intelligent Digital Pressure Controller

KJT-L204AU Axial Intelligent Digital Pressure Controller

  • Overload capacity:150%
  • Sampling rate: 5 times/second
  • Measuring medium:304 stainless steel compatible media
  • Accuracy level:1%FS or 0.5%FS
  • Operating temperature:-20-80℃
  • Alarm point:Full range arbitrarily set
  • load capacity:380V/3A、 220V/5A、24V/5A
  • Display method:High brightness LED digital tube
  • output signal:Passive switching value 4-20mA

1

KJT-L204AU intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure detection and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.



TypeProduct Description
KJT-L204AU
Axial Intelligent Digital Pressure Controller

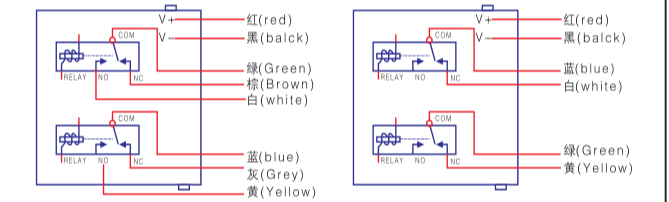

output method204AUDual Relay Outputs
2NO
3
NO+NC
Transmission output0No output
24-20mA output
Accuracy level11%
20.5%
process connectionA20*1.5
BG1/2
CG1/4
DOther orders are specified
Power supplyWDC24V battery powered
A
AC220V power supply
BAC380V power supply
Measuring range-100kPa-60MPaCustomer choice
