KJT-L208 four-way intelligent digital pressure controller
KJT-L208 four-way intelligent digital pressure controller

KJT-L208 four-way intelligent digital pressure controller

  • ●:100 standard meter installation
  • ●:Arbitrary configuration of control points on site
  • ●:Multiple units freely switchable Mpa kg/cm PIS
  • ●:4-digit LED digital tube display
  • ●:4~20mA standard signal output
  • ●:One Touch Zero Function
  • ●:Four control point relay outputs
  • ●:Power supply optional 24VDC, 220VAC
  • ●:Sampling rate: 5 times/second

1

KJT-L208 intelligent digital pressure controller can realize low pressure stop, high pressure start or low pressure start, high pressure stop control function controller pressure range full range of return difference adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure check and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.


TypeProduct Description
KJT-L208
Intelligent digital pressure controller

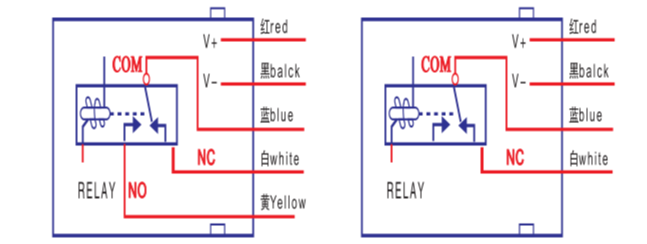

output method206
Three relay outputs
208Four relay outputs
2NO
3
NO+NC
Transmission output0No output
24-20mA output
Accuracy level11%
20.5%
process connectionA20*1.5
BG1/2
CG1/4
DOther orders are specified
Power supplyWDC24V battery powered
A
AC220V power supply
Measuring range-100kPa-60MPaCustomer choice


2


3

2

4


12 (1)
