The third generation intelligent laser driving anti-collision controller
The third generation intelligent laser driving anti-collision controller

The third generation intelligent laser driving anti-collision controller

  • ●:Two-way laser ranging sensor
  • ●:The sensor range can be set, with a maximum distance of 30 meters and 50 meters.
  • ●:LCD screen displays real-time distance and running status display
  • ●:The left and right driving deceleration and parking distances can be set separately, and alarm signals can be output. ​
  • ●:Slow down and stop alarm voice prompts

     ①Controller-Host

          The controller function is mainly to process and calculate the signals received by the laser sensor, and make corresponding electromechanical actions (voice alarm and relay control) based on the detected distance.

     ②Laser range finder

         The function of the laser rangefinder is to irradiate the laser beam to the opposite vehicle or reflective plate and receive the reflected light reflected by the reflected signal. Provided to the controller, the controller calculates the distance from the vehicle to the measured object.

      ③The function of the reflective plate is to reflect the laser in a direction with minimal loss. (Optional)

        This product is a bidirectional laser sensor with a detection distance of 30 meters (the distance can also be specified by the user). This product supports distance voice prompts, deceleration/parking voice prompts and has four relay outputs, which can participate in automatic control of driving.

1


Detection distanceMeasuring distance 30M
Detection distance error≤5%
Alarm and output methodsParking voice alarm and deceleration voice alarm with relay output
Alarm intensity≥80 db
Operating Voltage

AC220V,50HZ

Power≤100W
ambient temperature-20°C-+60°C
Relative humidity30%-95%

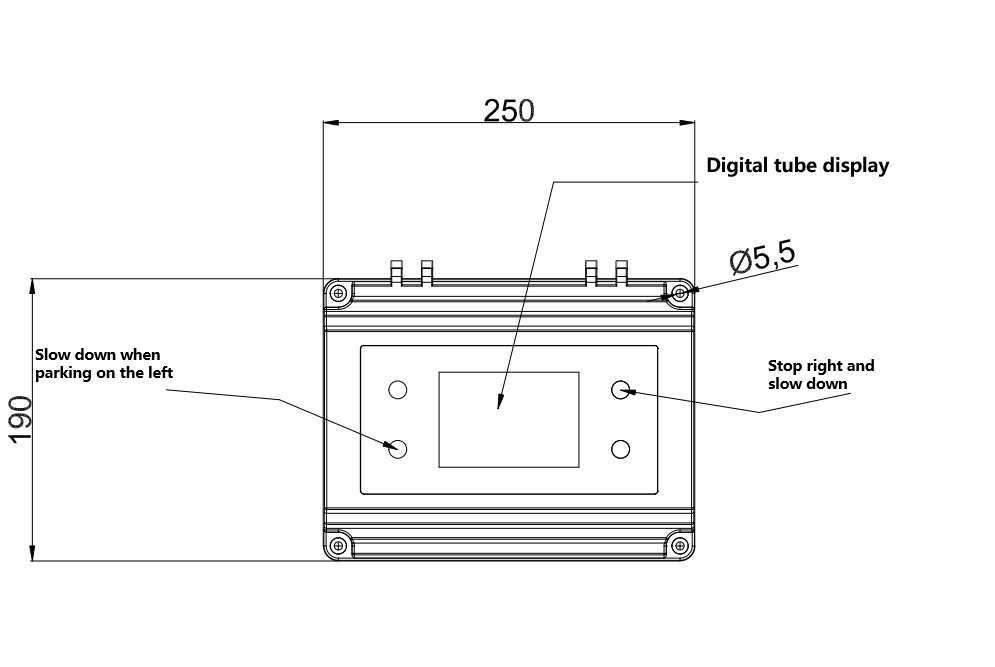

Dimensionscontroller 250*190*92MM

10GAI

2

75dacea190dfe09

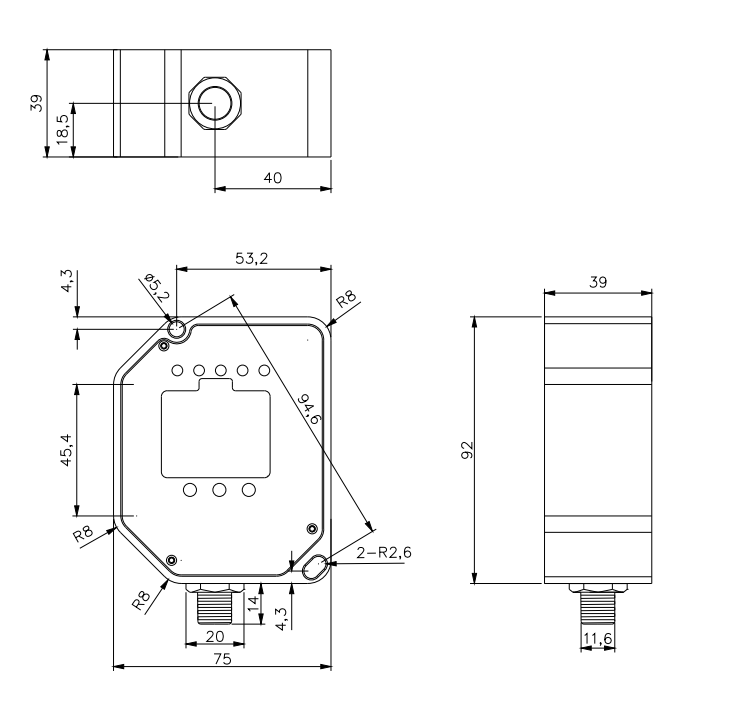

激光测距尺寸图

3

11GAI

4

  The Kjt crane anti-collision device uses a non-contact laser ranging distance sensor to monitor the distance between vehicles on the same span in real time. If the distance between vehicles is less than the set safety distance, the intelligent control host can slow down and stop the vehicle. , thereby effectively avoiding collision accidents and ensuring the safety of people and equipment.

         This system is easy to install and debug, and can significantly improve the safe operation ability of driving. It is an industrial product specially designed and developed for applications in metallurgy and other related industries that require distance measurement and position control.
