Intelligent belt conveyor fault address display
- Product Series：Intelligent belt conveyor fault address display
- Load current：AC220V
- Contact method：6MA
- Transmission distance：1200M
- Appliance life：＞100,000 times
- Protection class ：IP65/IP67
| Fault address display | |
| Power supply | 220VAC |
| Display | 1-99 address number |
| Memory | 10 fault numbers |
| Address code transmitter | |
| Address code transmitter | 1~99 |
| Trigger voltage | AC220V |
| Trigger current | 6MA |
| Transmission distance | 1200M |

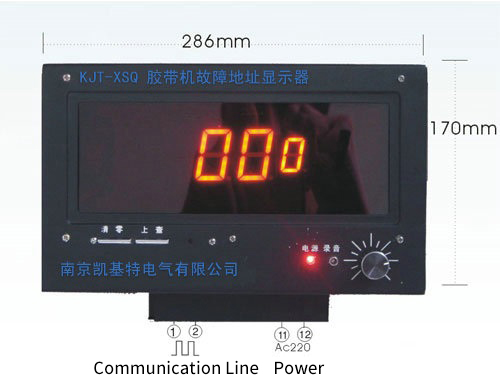

KJT-XSQ tape machine fault address display

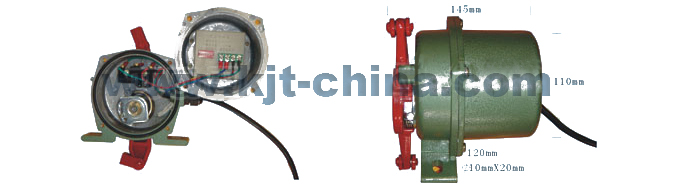

For the convenience of users and construction, for the pull-rope switch that is currently commonly used on conveyor belts, the height of the end cover is increased while the original installation size remains unchanged, and the address transmitter and the pull-rope switch are combined into one. As shown in the picture

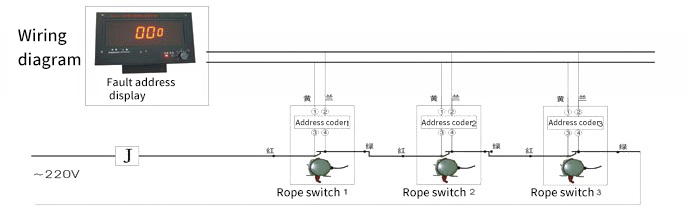

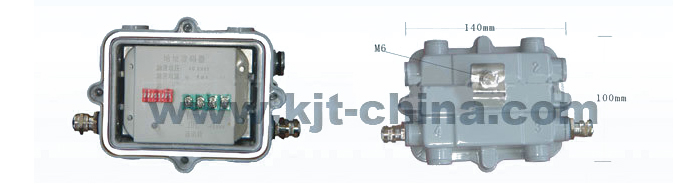

KJT-FSI cooperates with the external address code transmitter of deviation switch, slip switch, tear switch and pull rope switch. The address code transmitter is installed in a waterproof aluminum die-casting shell. Terminals 1 and 2 are connected to the communication line. 3 and 4 are connected in parallel with the normally closed point of the corresponding equipment.
