Speed detector (digital display)
Speed detector (digital display)

Speed detector (digital display)

  • Product Series:KJT speed detector (digital display)
  • Load current:AC 220V±10% or DC 24V
  • Contact method:5 groups of normally open (or normally closed), 3A/220V delay
  • Speed range:0.2-9.9 meters/second
  • Appliance life:>100,000 times
  • Protection class :IP65/IP67

主要技术参数

Ambient temperature-15℃-+65℃
Relative humidityno less than 80%
Operating VoltageAC 220V±10% or DC 24V
Speed range20 -- 1800 rpm
belt speed0.2--9.9 meters/second
Overall power consumption<15W
Number and capacity of contacts5 groups of normally open (or normally closed), 3A/220V delay
times0-220 seconds

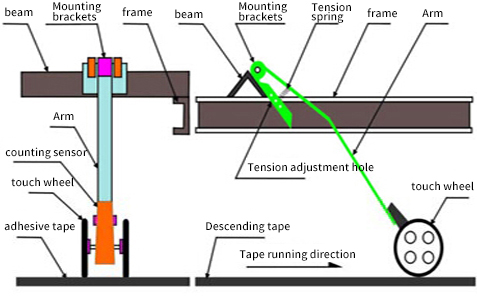

Grouped equipmentMounting brackets
Protection levelIP65 has good vibration resistance and good waterproof performance

3

KJT-ST

4

场景图

d25bccef52ed6fc24d8045760301c48
