KJT-PK Two-pole Deviation Switch
KJT-PK Two-pole Deviation Switch
KJT-PK Two-pole Deviation Switch
KJT-PK Two-pole Deviation Switch

KJT-PK Two-pole Deviation Switch

  • Product Series:KJT-PK
  • Load current:AC380V 5A,DC24V 5A
  • Contact method:NO1.NC1;NO2. NC2. (Please specify when ordering)
  • Reset mode : Auto
  • Appliance life:>100,000 times
  • Protection class :IP65/IP67

KJT-PK high-end model series are widely used in the detection of conveyor belt deviation to prevent material overflow and other failures

caused by belt deviation. This machine is widely used in transportation systems in mining, electric power and chemical industries.


When the running tape deviates, the vertical roller on the edge of the tape rotates and squeezes the vertical roller to tilt it. If the tilt of

the vertical roller is greater than the action angle, a switch signal will be sent immediately. If the vertical roller continues to tilt greater

than the secondary action angle, a switch signal will be sent. , then output another set of switch signals. The two sets of switch signals

can be used for alarm or shutdown respectively. After the belt conveyor resumes normal operation, the vertical roller will automatically reset.

1

Product Paramenters
ambient temperature-30℃~+50℃
Relative humidity0~85%
first action angleI:12°;II:10°;III:20°
second action angleI:30°;II:40°;III:35°
Action force70-100N
Number of contacts1 normally open, 1 normally closed (2 groups of normally open and 2 groups of normally closed can be added as needed)
Contact ratingAC380V 5A DC24V 5A
reset mode Auto
Electrical life>100,000 times
Protection levelIP65/IP67
weight5kg

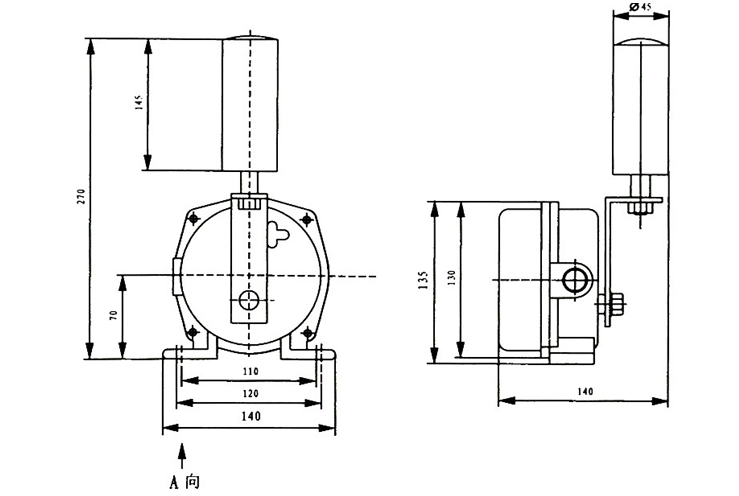

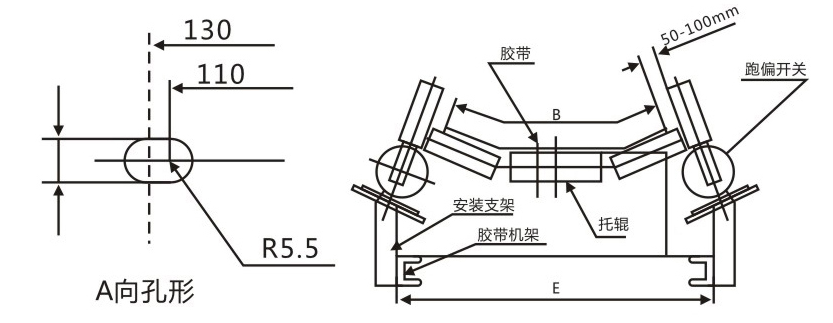

尺寸图

 1692417270287

f85861ea63038614d36f58cc6993550

1692417291663



88

场景图

d25bccef52ed6fc24d8045760301c48
