KJT-KB-5169 Standard lever travel limit switch
KJT-KB-5169 Standard lever travel limit switch
KJT-KB-5169 Standard lever travel limit switch
KJT-KB-5169 Standard lever travel limit switch

KJT-KB-5169 Standard lever travel limit switch

  • Structural features:Double-circuit limit switch, built-in contact seat with double reed design, long mechanical life
  • Shell material:Rugged one-piece cast aluminum alloy housing with high mechanical strength
  • Protection level:IP66 protection, oil-resistant, waterproof and pressure-proof structure
  • internal structure:The built-in contact base has a double reed design and is equipped with a set position indicator board, so it is easy to maintain. There are many types of switches, which are convenient to use and have a wide range of uses.

■Double-circuit travel switch, stable and reliable, small in size, economical and practical

■Made of aluminum alloy one-piece cast housing with solid structure

■ IP66 level protection, waterproof, oil-proof and dust-proof structure;

■ The built-in micro switch has a double reed design structure and has a long mechanical life.

■ Suitable for application scenarios with a lot of mist and water vapor

1


Rated voltage 15A 250VAC
operating speed 1mm~2m/s
operating frequencyMechanical: 120 times/min
Electrical: 30 times/min
Contact resistance15mΩ or less
Insulation resistance 100Ω or more (below 500VDC)
Withstand voltage Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute
Between terminal and ground: 2,200VAC, 50, 60Hz for one minute
 Between terminal and no-carrying current metal: 2,200VAC, 50/60Hz for one minute
vibration Action durability: 10~55Hz, 1.5mm double amplitude
impact Mechanical durability: more than 1000m/s2 (about 100G or more)
Malfunction durability: 300m/s2 or more (about 30G or more)
Use ambient temperature -10~+80 ℃
humidity Maximum 95%RH
Service life Mechanical: more than 15 million times   Electrical: more than 500,000 times
Protection level IEC:IP66
weight About 258g


Model
KB-5101KB-5102
KB-5103
KB-5104KB-5107KB-5108KB-5109KB-5106
KB-5166
KB-5168
KB-5169
KB-5105
Max OF2720g2720g1000g1420g1360g2720g150g1200g
Min RF910g910g227g280g227g910g--
Max PT1.7mm1.7mm20°20°20°1.7mm28mm227g
Min OT6.4mm5.6mm70°70°70°4mm-55°
MaxMD1mm1mm10°10°10°1mm-35°
OP34 ± 0.8mm44.8± 0.8mm---44.5 ± 0.8mm-90 ± 10 °

2

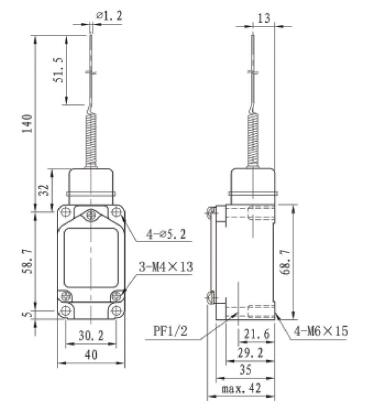

5169

3


2 (4)

4

2 (1)
