Wire breaker detector KJT-DU3C
Wire breaker detector KJT-DU3C

Wire breaker detector KJT-DU3C

  • model:KJT-DU3C
  • Signal transmission:PNP or NPN
  • type:capacitive sensor
  • Features:Easy to install
  • Advantage:High precision

参数表

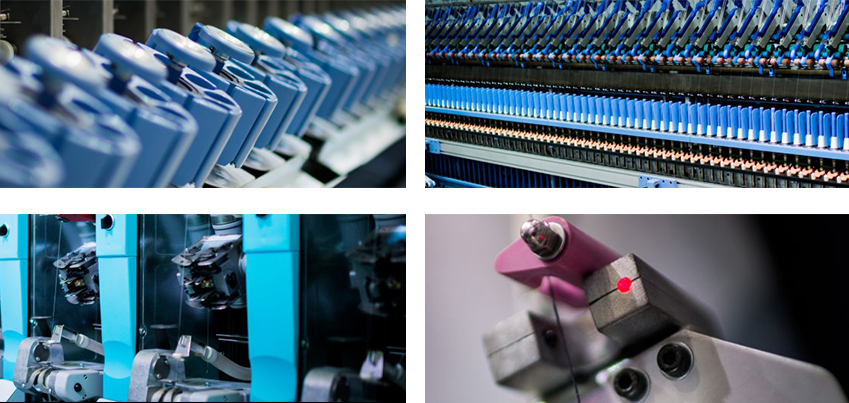

KJT photoelectric yarn sensor is a high-precision, non-contact photoelectric weft sensor, suitable for textile processes such as winding, twisting, doubling and synthetic fiber deformation. The photoelectric yarn sensor is a broken yarn sensor that is easy to use and easy to install.

●Basic functions of photoelectric type

◇Photoelectric weft sensor can detect the operation status of various types of spinning yarn on the spinning machine (straight-line operation, reciprocating operation and circular operation). In the event of spinning stagnation or yarn breakage, the photoelectric system can promptly notify the spinning machine automatic control system. According to the actual situation (determined by the model of the textile machine).

◇The weft yarn sensor can directly drive the automatic yarn cutter connected to itself to cut the weft yarn at the corresponding position; it can also send out a control signal to automatically stop the corresponding spinning machine working position.

◇In the alarm state, the photoelectric type will warn the on-site operators with the flashing signal of the light-emitting diode.



ModelKJT-DU17-ZNBPNP3 WireNCDC24V
Shell Materialaluminum
Sensing method

Optoelectronic

ambient temperature-20℃~80℃
control output200mA
Protection levelIP67

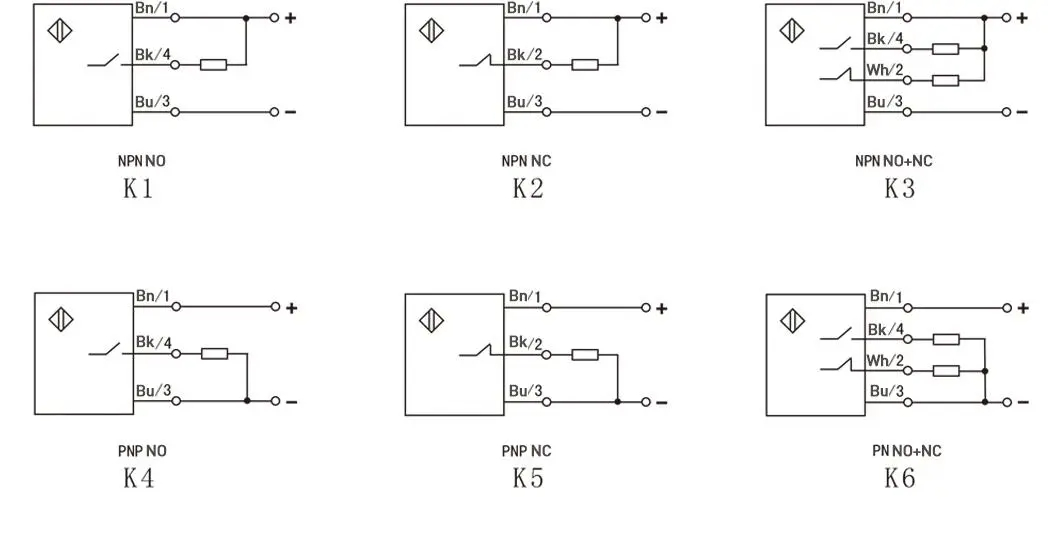

接线图


纺织传感器接线图


应用
