Special speed sensor for textile industry
- model：Special speed sensor for textile industry
- Signal transmission：voltage analog signal
- type：speed sensor
- Features：Easy to install
- Advantage：High sensitivity
●Features:
◇Extremely high sensitivity to magnetically permeable metals.
◇Used on gears, racks or uneven magnetic conductive metals for counting, positioning and detection.
◇Resistant to harsh environments, such as oil, water, dust, etc.
◇Excellent resolution and high repeatability.
◇Wide frequency response, can be used from 0Hz to 33KHz.
◇High resistance to electromagnetic interference.
| Detection distance | 1.5mm |

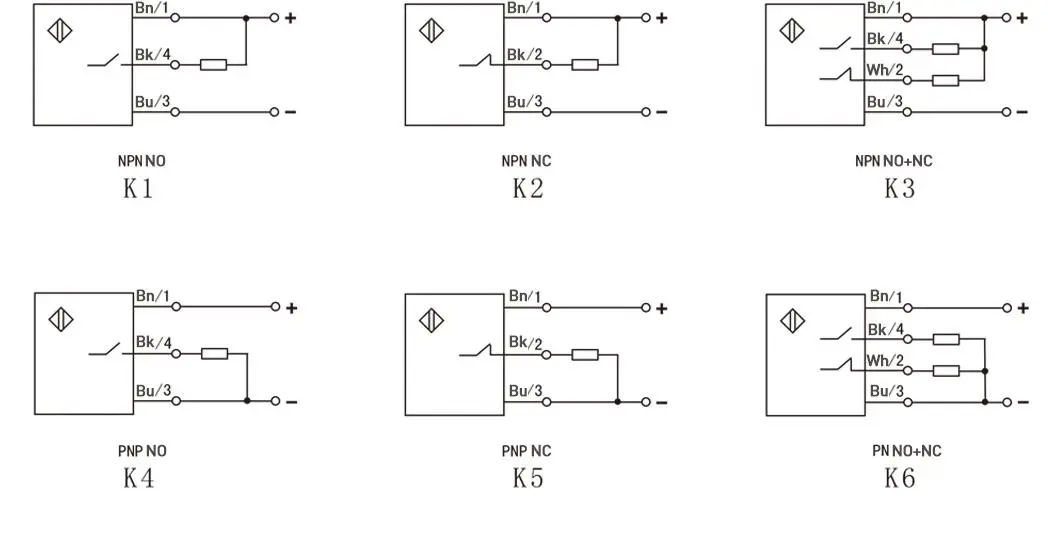

| Output form | NPN/PNP Automatic Identification |
| Output current | 50mA |
| Operating Voltage | 12-30VDC |
| measurement accuracy | ±a pulse |
| Current consumption | ≤15mA |
| response frequency | 0Hz~33KHz |
| Applicable module | Tooth spacing ≥3mm |
| ambient temperature | - 2 5℃~ 7 0℃ |
