KJT Intelligent Wireless Pressure Transmitter is a smart instrument with low power consumption and wireless communication function. It takes an advanced industrial-grade MCU as the core and high-quality sensors as the collection front-end. It is combined with an industrial-grade wireless GPRS data module to utilize China Mobile's mature GPRS network enables wireless transmission of field instrument data to the cloud.
The instrument reports data according to the set interval. Customers can realize remote instrument configuration and data query through the Web page. All uploaded and distributed data are stored in the database for later query. You can obtain instrument data by logging into the relevant website through an Internet PC or mobile terminal, and realize statistics and analysis of the collected data to form reports and data curves, which are intuitive, accurate and efficient.
Based on the extensive coverage of the GPRS public network, real-time monitoring of many monitoring points in a large area can be achieved, such as water pipe network pressure, high pool liquid level, environmental parameter detection, hydrological monitoring, etc.
○ Product features
GPRS network is applicable to a wide range of areas;
LCD real-time display;
Power supply reverse connection protection;
Two relay outputs;
Upper and lower threshold alarm functions;
Automatically adjust the time when connected to the Internet, and automatically reconnect when disconnected;
Key operation, the instrument can be configured on site;
View and remotely configure instruments on the Web, and support mobile phone text message query data;
It has shockproof and moisture-proof functions and is suitable for outdoor environments.
| Performance | |
| Measuring range | 0MPa～0.1MPa...10MPa |
| Accuracy | ±0.5%FS |
| pressure type | Gauge pressure/absolute pressure/sealed gauge pressure |
| show | 6-digit 8-segment digital LCD |
| output signal | LCD on-site display, GPRS wireless signal transmission |
| button | 3 buttons |
| Electrical connections | 6-core cable (power supply and relay) |
| weight | About 1.6kg |
| Electromagnetic Compatibility | GB/T 17626.2/4-2006 |
| storage temperature | -30℃～80℃ |
| pressure sensitive diaphragm | Stainless steel 316L |
| Operating temperature | -20℃～70℃ |
| Relative humidity | 0%～95% |
| Relay load | 5A/220V AC 5A/30V DC |
| Relay contact life | >100,000 times |
| long term stability | ±0.5%FS/year |
| vibration | ≤3g/10Hz...150Hz(IEC 60068-2-6-2007) |
| Transmission distance | Available anywhere covered by China Mobile GPRS network |
○ Turn the device on and off
When the device is working normally, the collected data is displayed in real time. When the device is not used for a long time, you can use the supplied magnetic stick to click the POWER button on the display panel for 2-3 seconds. The display will turn off and the device will enter a deep sleep state. Click the POWER button of the device again for 2-3 seconds, the display will display data normally, and the device will enter normal working status. The position of the power on/off button is shown in Figure 6-1.
○ Device calibration
When the device changes the use environment and displays an error in the zero-point pressure value under normal atmospheric pressure, you can use the supplied magnetic rod to press the CALIBRATE button for 2-3 seconds to perform zero-point calibration of the device. At this time, the first field of the display "C" is displayed, indicating that the zero point calibration of the device is successful.
Adopt low power consumption processor
Built-in precision clock, automatic time adjustment, synchronized with Internet time
Embedded TCP/IP protocol.
High-precision internal AD detects temperature changes
Dedicated host computer software setting parameters
Support data storage function
Built-in watchdog, no crash
Lithium-ion battery powered
Support deep sleep, key wake-up function
With data storage and data reissue functions
With low battery power SMS alarm function
Shell protection grade: IP65
Standard industrial 5-core waterproof aviation plug.
High precision, anti-interference, maintenance-free
It has the functions of anti-reverse connection, anti-surge, anti-shock, anti-moisture, anti-rain, anti-harmful gas.
○ Selection tips
1、When selecting, please note that the medium being measured must be compatible with the contact parts of the product.
2、The minimum basic measuring range of absolute pressure products is 0.1MPa.

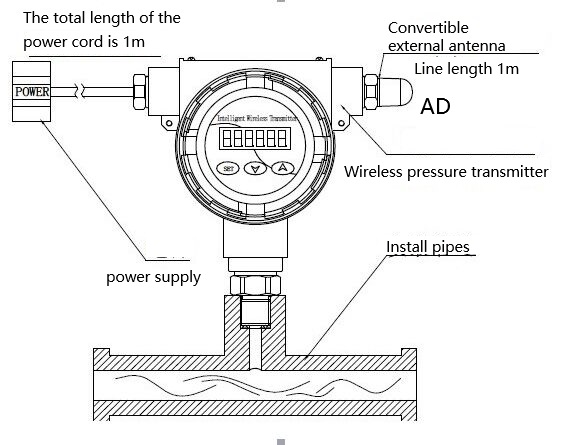

3、The standard power and relay connection cable is 1 meter.
4、In order to improve product reliability, it is recommended that users install lightning protection devices on site and ensure that the product is reliably grounded.
5、For special requirements, please discuss with our company and indicate them in the order.
