The industrial control network is generally a local area network, and the scope of action is generally within a few KM. The measurement and control equipment distributed around the production device is connected to a automated system with different functions. Control the network in the factory of the factory, assembly flow lines, greenhouses, grain depots, dams, tunnels, various transportation pipe systems, buildings, military, fire, environmental testing, building home furnishings and other places.
The data collection module is a key part of the Industrial Automation Internet of Things. It can enable the information between things to exchange, send and receive, data transmission, remote management, remote control, remote control, etc.

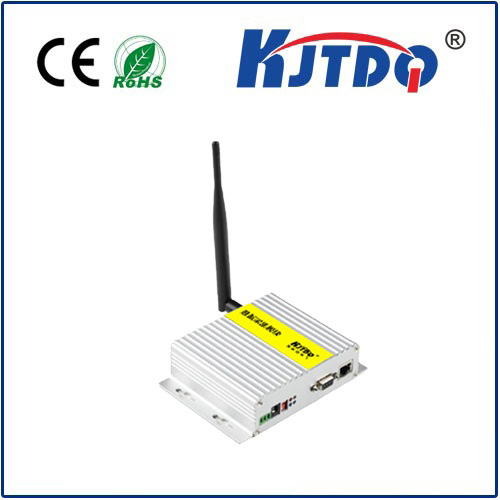

Kikhi's high performance 4G/5G data collection gateway adopts industrial core technology, multiple protocol data collection, local analysis of PLC data, powerful data processing functions, fast speed, collection, conversion, encryption, rich protocol database. Small equipment, simple configuration, and rail installation saving spatial utilization rate.
| model | Data collection gateway KJTH6221 |
| MCU | Cortex®-M4 180MHz |
| Ethernet | 1st road 100M mesh |
| RS232 | 1 road |
| External SDRM | 16M |
| wireless | 4G/5G |
| Indicator light | 8 -bit LED indicator light |
| input signal | 3 -way switching signal input |
| RTC | External RTC real -time clock |
| Output Interface | 2 Road isolation 24V output, the total output power is 6W, which can drive the external signal indicator |
| USB communication interface | 2 road USB interface, 5V power output capacity of 1W, of which all the way can be used for USB to 4G wireless communication |
| Input and output interface | Standard GX12-6 airline plug, reliable connection |
| Working power supply | 220VAC |
| Power input interface | Popular power socket |
| Operating temperature | -20℃~85℃ |
ARM high-performance microcontroller built-in Cortex ™ -M4 core, adaptive real-time storage accelerator, operates as high as 180MHz, meets high-speed data collection and processing requirements.
Integrate a variety of data collection communication interfaces: 100M Ethernet interface, one -way USB interface, and RS232 interface to meet the current needs of various types of equipment information collection at the current industrial site.
Integrated Simcom industrial grade 4G -pass module, stable performance, and reliable data transmission. Support LBS base station positioning function, which can achieve equipment location information collection. Support LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE
For the frequency band, support LTE CAT4 (the downward speed is 150Mbps)。
Equipped with 8 LED indicators for human -computer interaction. Through the indication status of the LED, you can understand the operation of the gateway in real time。
Equipped with a 2 -way dial switch, which can be used to set up different operating modes of the gateway。
Equipped with a 3 -way switch signal input interface, which can be used to collect switch quantity input signals.
Equipped with 2 -way switching output interface, relay dry connection point output.
Built -in 16M industrial SDRAM data cache chip, which has its performance reliable and stable, further enhances the processing capacity of gateway data.
