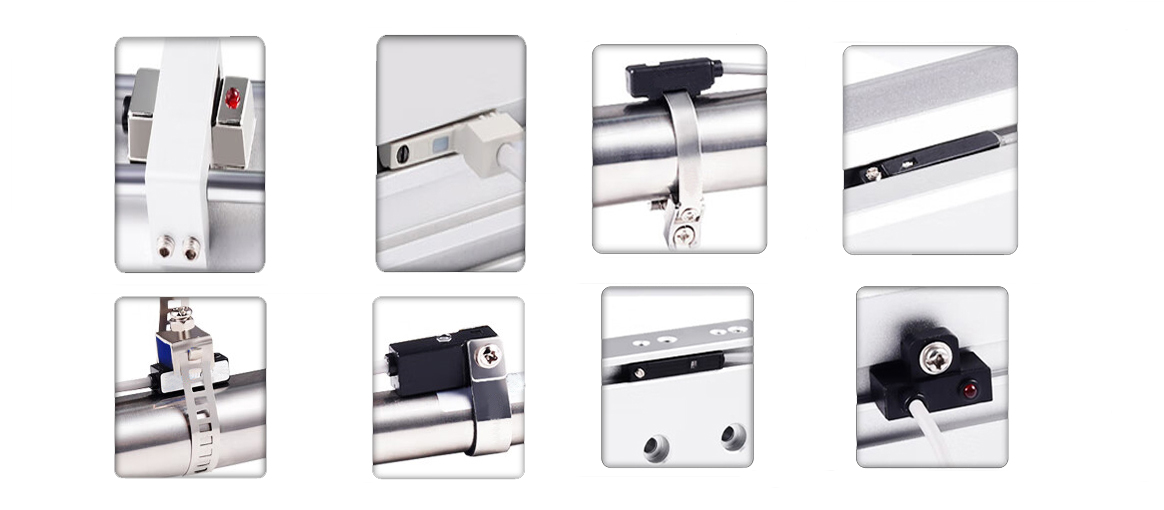

KJT magnetic switch cylinder is used to detect the position of the cylinder stroke. There is no need to install brackets at both ends of the stroke. It is easy to install, easy to use and has a compact structure. Reliable, high durability, low cost and fast switching response time. Widely used in various mechanical equipment.
●A variety of models are available to suit various occasions;
●The wires are made of oil-resistant PVC material with high protection level.
Switching logic | Electronic type without contacts; normally open type |
Induction switch type | contact type |
Operating voltage range | 5~120VDC |
Maximum switching current | 100mA Max. |
Maximum contact capacity | 3.5W Max. |
Internal current consumption | None
|
Residual voltage drop | 2.5V Max.@10mA DC |
Leakage current | None |
Indicator light | Red LED |
Cable | φ2.8，2C/Gray oil-resistant PVC |
Maximum switching frequency | 1000Hz |
Operating temperature range | -10℃~70℃ |
Impact resistance | 30G |
Vibration resistance | 9G |
Waterproof level | lP67 |
protection circuit | power supply polarity reverse protection; surge absorption protection |
