Compared with traditional photoelectric switches that rely on light quantity feedback to detect objects, the KJT-FG30 photoelectric sensor using TOF technology has the following advantages: 1: More accurate positioning 2: Reduce the interference caused by the color, curvature, environment, etc. of the object surface 3: The highest possible Switching frequency up to 1000 Hz4: Stable detection of transparent objects. 5: Not affected by sunlight, can be used outdoors. 6: Achieve longer detection distance (diffuse reflection can reach up to 4 m! It is the only laser photoelectric sensor on the market)
| Project model | Type | 2-point teaching type |
| NPN | KJT-FG30N | |
| PNP | KJT-FG30P | |
| RS485 | KJT-FG30 | |
| Detection distance range | 50～2000, 50～4000 setting distance (white paper, black paper 200×200mm) | |
| Spot diameter (reference value) | 4*2cm（1m）;12*6cm(2.5m)；14*7cm(4m) | |
| Reflectivity characteristics (white and black error) | Less than 5% of the set distance (set distance 2000mm) | |
| Light source (luminescence wavelength) | Infrared laser (940nm) Class1 (IEC/EN60825-1：2014) | |
| Voltage | DC10～36V (including Ripple (p-p) 10%) Class2 | |
| Current consumption | 20mA or less | |

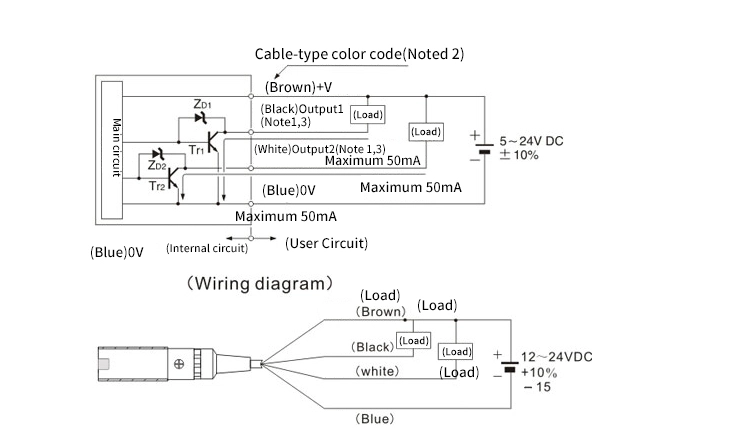

| Output load | Load power supply voltage DC26.4V or less Class2, load current 100mA or less (Residual voltage: load current within 10mA: 1V or less, load current within 10 to 100mA: 2V or less) Open connector output type (NPN/PNP output varies by model) | |
| Protection circuit | Power supply reverse connection protection, output short circuit protection, output reverse connection protection | |
| Frequency | 500hz | |
| Distance setting | Teaching method | |
| Use ambient illumination | Illumination of light receiving surface | Sunlight: below 10,000lx |
| Ambient temperature range | During operation: -20～﹢55℃, during storage: -40～﹢70℃ (no icing, no condensation) | |
| Ambient humidity range | During operation: 35~85%RH, during storage: 35~95%RH (no condensation) | |
| Insulation resistance | 20MΩ or more (DC500V megger) | |
| Withstand voltage | AC1000V 50/60Hz 1min | |
| Vibration (durability) | 10～55Hz, complex amplitude 1.5mm, 2h in each direction of X, Y and Z | |
| Impact (durability) | 500m/s2 3 times in each direction of X, Y, Z | |
| Protective structure | P65 (IEC60529) | |
| Indicator light | Action indicator (red), stability/communication indicator (green) | |
| Connection method | Wire lead type (standard wire length 2m), M8 connector relay type (standard wire length 0.3m), M12smart click connector relay type (standard wire length 0.3m) | |
Quality (Packaging state/body only) | Lead-out type | Resin case type: about 120g/about 65g |
| Material | Shell | ABS |
| Lens Department | PMMA | |
| Display part | PET | |
| Accessories | Instruction manual (Chinese/English), compliance sheet, note. Installation accessories are sold separately. | |
