KJT-A3R Manually Adjustable Fiber Amplifier
- Product Model：A3R-N A3R-P
- Light source：Red, 4-Element Light Emitting Diode
- Respond time：Action, reset: 200µs each
- Power supply voltage：12 to 24 VDC ±10 %, ripple (P-P) 10 % or less

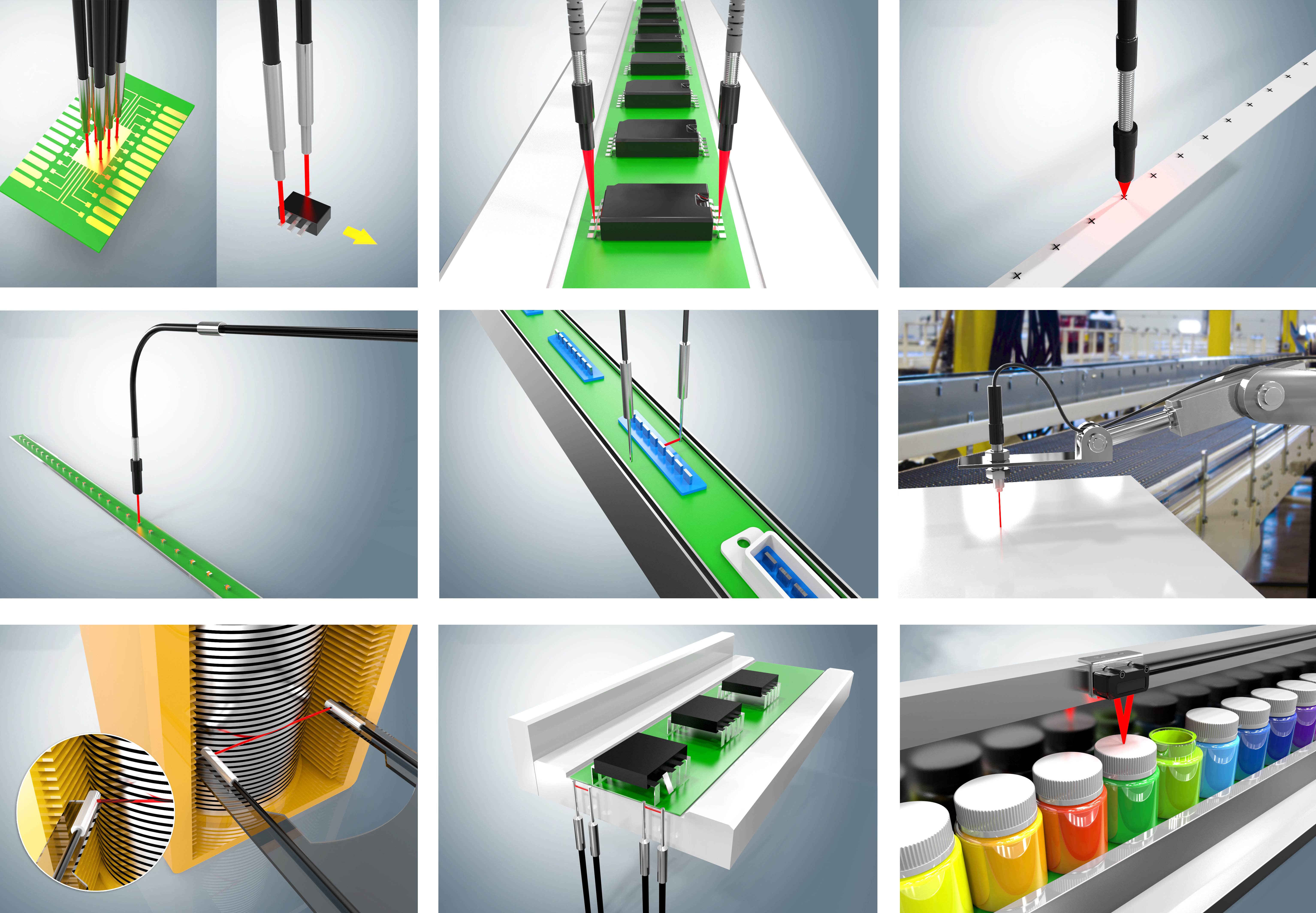

◆ High-performance fibre optic sensors suitable for detecting small objects and small chromatic aberration, adapting to the installation in
narrow space and bad environment.
◆ Fibre optic detector head is small, suitable for installation in narrow space, and the fibre optic head can work reliably in bad environments
such as large electromagnetic interference, large temperature difference, large humidity, and the need for explosion-proof occasions.
◆Simple operation and adjustable sensitivity.
| Product model | A3R-N NPN output | A3R-P PNP output |
| Light source (luminescence wavelength) | Red 4-element LED | |
| power supply voltage | DC12~24V±10% fluctuation (p-p) less than 10% | |
| Power consumption/power consumption | 600mW or less | |
| control output | Open collector output type (NPN or PNP) Load voltage 30V or less, load current 50mA or less (residual voltage: 1V or less) ON when exposed to light/ON when protected from light switching type | |
Response time | Action and reset: 200 µs or less each | |
| Sensitivity adjustment | 8 Turn the full-turn knob (with indicator) | |
| Protection circuit | Power reverse connection protection, output short circuit protection | |
| Timer function | No timer, with OFF delay timer Switch type (timer time: fixed at 40ms) | |
| Use ambient illumination | Surface illumination: Incandescent lamp: 10,000x or less, Sunlight: 20,000lx or less | |
| Number of connected units | Up to 16 units (ambient temperature specifications vary depending on the number of connected units) | |
| Ambient temperature | when connecting 1~3 units: -25~+55°C, When connecting 4~11 units: -25~+50°C, When connecting 12~16 units: -25~+45°C Storage: -30~+70℃ (no icing or condensation) | |
| Withstand voltage | AC1,000V 50/60 Hz 1min | |
| Vibration (durability) | 10~55Hz double amplitude 1.5mm in each direction of X, Y and Z for 2h | |
| Impact (durability) | 500m/s² 3 times in each direction of X, Y and Z | |
Protective structure | IEC standard IP50 (when protective cover is installed) | |
| Connection method | Wire lead type (standard wire length 2m) | |
| Quality (after packaging) | About 100g | |
Sell material | PBT | |
Appendix | User's Guide | |
