M18 Analog Photoelectric Sensor
- Operating voltage：15...30VDC
- Detection distance：10...100mm
- Output：0~10V ，4-20mA
- Operating frequency：80Hz
- Current consumption：≤20mA
- Output signal：PNP Analog

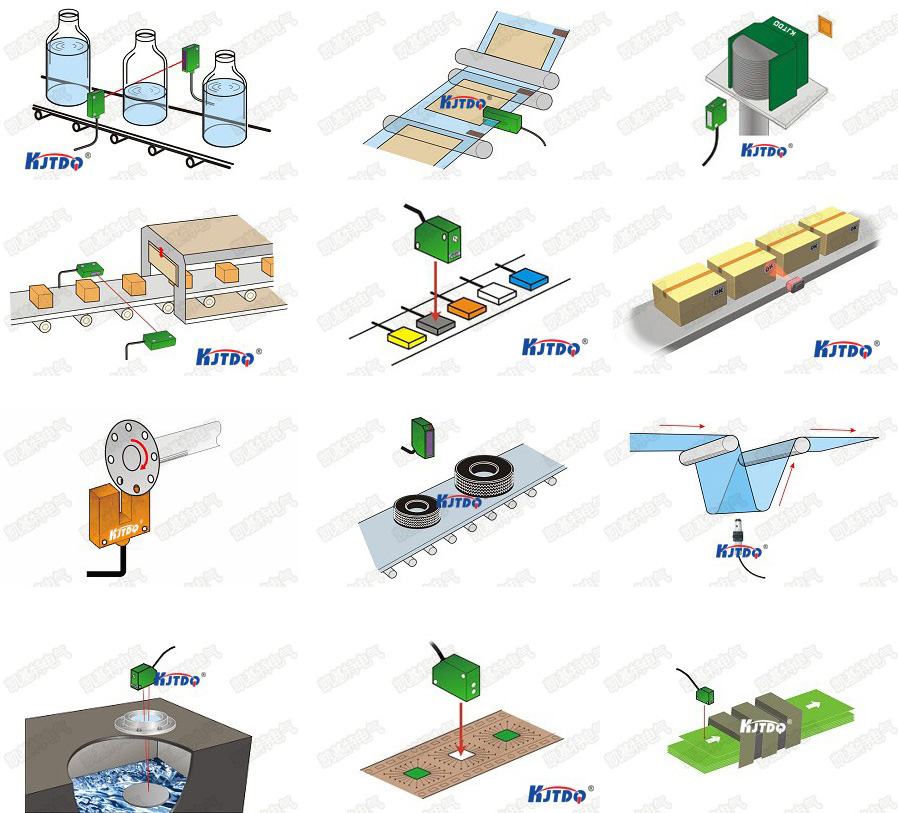

The working principle of the KJT analog photoelectric switch is based on the photoelectric characteristics of the photoelectric element. Its luminous flux changes with the measurement, and the photocurrent becomes a function of the measurement, so it is called the function operating state of the photoelectric switch. It can be used as photoelectric colorimeter, photoelectric displacement sensor, photoelectric distance meter, etc.
| Operating voltage | 15...30VDC |
| Installation method | ---------- |
| Detection distance | 10...100mm |
| Model size | M18*1*65 |
| Output | 0~10V ，4-20mA |
| Operating frequency | 80Hz |
| Current consumption | ≤20mA |
| Output signal | PNP Analogue |
| Switch point offset | ≤±10% |
| Load current | ≧4.7KΩ (voltage output) ≤470Ω (current output) |
| Hysteresis | 3...15% |
| Repeatability | ≤1% |
| LED display | ------------ |
| Short circuit protection | Short circuit, reverse polarity, overload protection |
| Working temperature | -10...50℃ |
| Temperature drift | <±10% |
| Protection class | IP67 |
| Shell material | Nickel plated brass |
| Detection surface material | PBT |
| Wiring | Cable 2 metres, OD ¢ 4.8mm |
