M12 Laser Photoelectric Sensor (Diffuse Reflective)

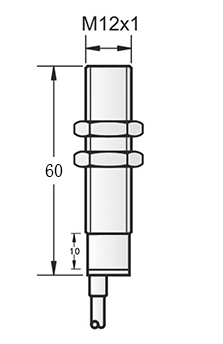

- Thread Size：M12X1
- Detection distance：Diffuse Reflective: Sn=300mm
- Detecting spot size：＜4mm
- Protection class：IP 67
- Operating ambient temperature：-5℃—+50℃
The KJT laser sensor (laser photoelectric switch) is a sensor that uses laser technology for measurement. It consists of a laser, a laser detector and a measuring circuit. Laser sensor is a new type of measuring instrument, which has the advantages of contactless long-distance measurement, fast speed, high accuracy, large range, and strong resistance to optical and electrical interference;
| Thread Size | M12X1 |
| Detection distance | Diffuse Reflective: Sn=300mm |
| Detecting spot size | ＜4mm |
| Operating voltage | 10-30VDC |
| No load current | <9mA |
| Suitable for large load currents | 150mA |
| Leakage current | <0.01mA |
| Voltage drop | <1V |
| Switching Frequency | 120Hz |
| Respond time | 0.1mS /0.1mS |
| Switching hysteresis | <15%（sr） |
| Repeatability | <1.0% （sr） |
| Protection class | IP 67 |
| Operating ambient temperature | -5℃—+50℃ |
| Temperature drift | <10%（sr） |
| Short circuit protection | Yes |
| LED light display | Yes |
| Shell material | Stainless steel Plastic |
| Connector method | Take-out type |
