M8 Ultra Small Laser Photoelectric Sensor (Diffuse Reflective)

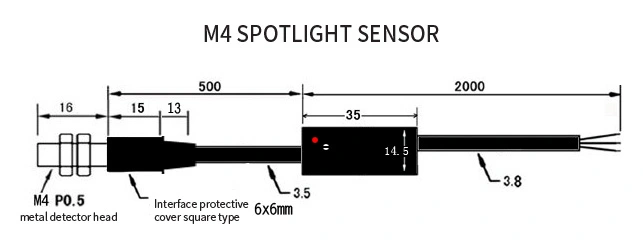

- Thread Size：M4X0.5
- Detection distance：Diffuse Reflective: Sn=130mm
- Detecting spot size：0.8mm
- Operating voltage：10-30VDC
- No load current：<9mA
- load currents：150mA
- Protection class：IP 67
The KJT laser sensor (laser photoelectric switch) is a sensor that uses laser technology for measurement. It consists of a laser, a laser detector and a measuring circuit. Laser sensor is a new type of measuring instrument, which has the advantages of contactless long-distance measurement, fast speed, high accuracy, large range, and strong resistance to optical and electrical interference;
| Thread Size | M4*0.5 |
Detection distance | Diffuse Reflective: Sn=130mm |
| Detecting spot size | 0.8mm |
| Operating voltage | 10-30VDC |
No load current | <9mA |
Suitable for large load currents | 150mA |
| Leakage current | <0.01mA |
Voltage drop | <1V |
Switching Frequency | 120Hz |
Respond time | 0.1mS /0.1mS |
| Switching hysteresis | <15%（sr） |
Repeatability | <1.0% （sr） |
Protection class | IP 67 |
Operating ambient temperature | -5℃—+50℃ |
| Temperature drift | <10%（sr） |
| Short circuit protection | Yes |
LED light display | Yes |
| Shell material | Stainless steel Plastic |
| Connector method | Take-out type |
