KJT Capacitive Proximity Sensors
Capacitive proximity sensors can be used to detect any object without contact. Capacitive proximity switches can detect metallic as well as non-metallic objects, regardless of the colour and surface condition of the object to be detected, whether transparent or not, can be reliably detected, the sensitivity can be adjusted knob, the closed non-metallic containers can be indirectly detected for liquids, powders and other materials. Almost all materials can be identified.
Principle of operation
Capacitive proximity switch also belongs to a kind of position sensor with switching output, first of all need to measure the capacitance between the sensor sensing surface electrode and the circuit potential electrode, a close object affects the electric field between the two poles of this capacitor. This principle applies not only to metallic but also to non-metallic objects. Capacitive sensors generally operate via an RC oscillator, where even a small change in capacitance affects the amplitude. An integrated circuit then converts the amplitude into a switching signal, the sensitivity of which can be adjusted by means of a potentiometer.

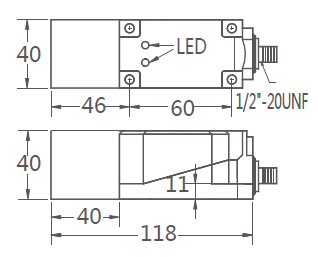

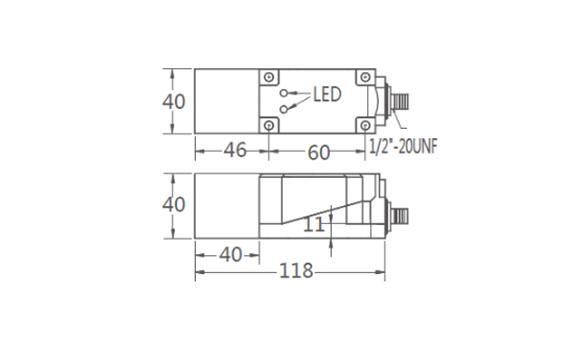

Technical parameter | |
Size | 118*40*40 |
Mounting | Non-Flush |
Sensing Distance SN [mm] | 15mm |
Operating voltage | 10-30VDC |
Output | PNP/NPN NO/NC |
| On-off level | 100Hz |
| Switch point offset | ≤±10% |
| Return range | 3...20% |
| Repeat accuracy | ≤3% |
| Load current | ≤200MA |
| Residual voltage | ≤2.5V |
| Current consumption | ≤15MA |
| protection circuit | Surge overload short circuit, reverse polarity protection |
| Output instructions | Yellow LED |
| ambient temperature | -25-60℃ |
| environment humidity | 35-95% |
| Protection level | IP67 |
| Shell material | PBT |
| Wiring | 2M PVC cable |
Liquids, powders, non-metals, and metals can all be detected. The sensing distance and sensitivity can be adjusted, and the detection of liquids is not affected by bubbles and liquid color. The detection distance is greatly affected by the size, thickness and conductivity of the object being detected. The larger and thicker the object being detected, the better its electrical conductivity. The greater the product detection distance, the smaller the detection distance.
