M18T Flush long distance proximity sensor
- Product Type：KJT-J18MT
- Installation Method：Flush
- Detection Distance：8/12mm
- Working Voltage：10-36VDC /90-250VAC
- Output Mode：NPN/PNP NO/NC
- Ambient temperature：-25℃~+70℃
- Outlet method：2M PVC Cable
kjt enhanced long-distance inductive proximity switch is a long-distance inductive proximity switch, including a shell, a high-frequency oscillation circuit, a shaping detection circuit, a signal processing circuit, and a switching output circuit. After the signal output by the high-frequency oscillation circuit is shaped and detected by the shaping and detection circuit, it is connected to the signal processing circuit.

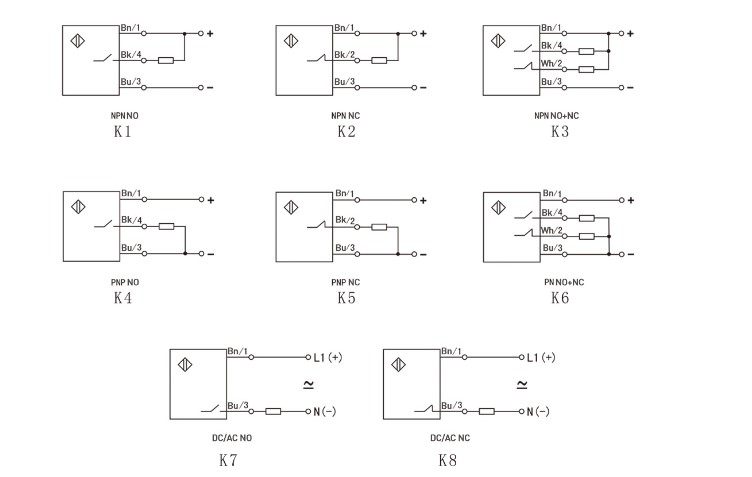

| ●Can detect various metal objects | DC 2NO |
| ● With surge, overload, short circuit and reverse polarity protection functions | DC 2NC |
| ● Shell material: Nickel copper alloy | DC 3 NPN NO |
| ● Protection level: IP67(IEC) | DC 3 NPN NC |
| ●Ambient temperature: -25℃~+70℃ | DC PNP NO |
| DC 3 PNP NC | |
| -- | |
| -- |
| Product Model | KJT-J18MT |
| Installation method | Flush |
| Detection distance | 8/12mm |
| Working temperature | -25℃~+70℃ |

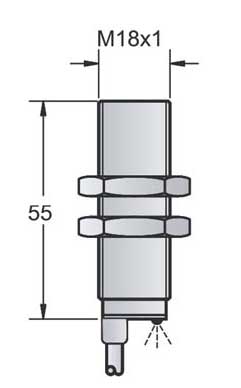

| Specifications | M18*55 |
| Operating Voltage | 10-36V DC/90-250V AC |
Ripple | <10% |
| No-load current | <10mA |
| Maximum load current | 200mA |
| Voltage drop | ≤1.5V |
| On-off level | 1000Hz |
| Hysteresis | <15(Sr) |
| Overload protection current | 180mA |
| Short circuit protection | YES |
| Repeat accuracy | <1.0%(Sr) |
| Temperature drift | <10%(Sr) |
| Response time | 0.5ms |
| Connection method | 2M PVC lead wire |
| Protection level | IP67 |
| Sensing surface material | PBT |
| Shell Material | Nickel plated copper |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
| Shock/Vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 |
